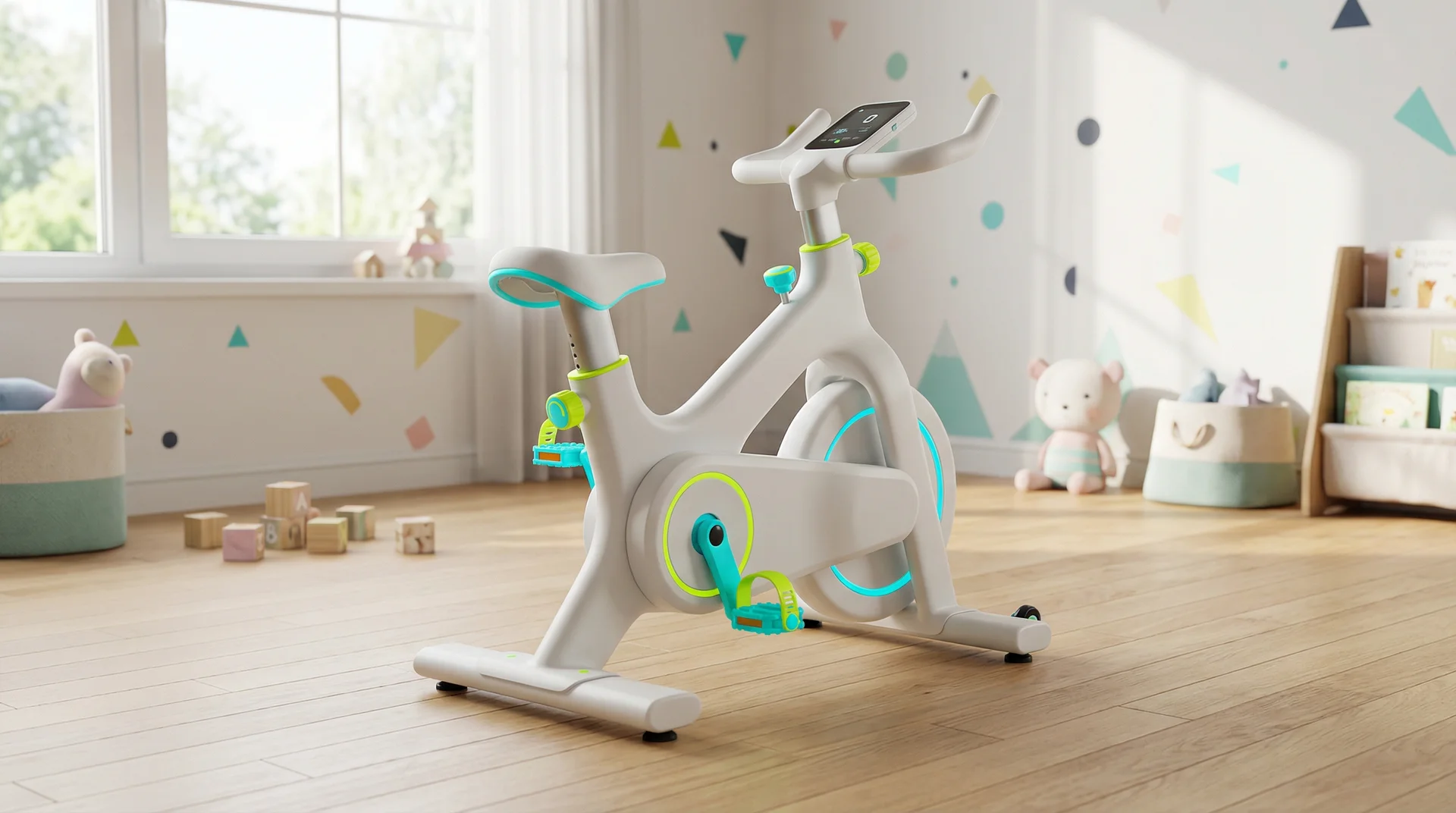

RENDER
Executive Summary
The VoltRider Mini is a kinetic-energy-harvesting stationary bicycle designed for children aged 5-10, where the mechanical energy of pedaling is converted into electricity to power an integrated interactive display. This self-sustaining system utilizes a high-efficiency DC dynamo and supercapacitor buffer to gamify physical fitness, requiring constant motion to keep the educational software and games running. The product combines safety-focused industrial design with renewable energy education.
Technical Specifications
| Power Generation | Brushless DC Dynamo (30W - 60W output) |
| Energy Storage | 50F Supercapacitor Buffer (maintains screen for 60s idle) |
| Display | 10.1-inch Low-Power LCD, 1080p, Touchscreen |
| Resistance System | Magnetic non-contact resistance (Silent operation) |
| Dimensions | 36" L x 18" W x 40" H |
| Weight Capacity | Max 110 lbs (50 kg) |
Manufacturing Analysis
Complexity
Medium
Timeline
10-12 Months
Est. Tooling Cost
180,000 USD
Bill of Materials
| Component | Material | Cost |
|---|---|---|
| Structural Frame | Powder-coated tubular steel | 35.00 USD |
| Outer Shell/Fairings | High-impact injection molded ABS | 18.00 USD |
| Generator Unit | Copper winding, Neodymium magnets | 22.00 USD |
| Display Module | LCD Panel, Glass, Housing | 38.00 USD |
| Main PCB & Power Management | FR4 board, Supercapacitors, Microcontroller | 15.00 USD |
| Drivetrain (Belt & Flywheel) | Rubber belt, Cast iron weighted wheel | 12.00 USD |
Est. Unit Cost140.00 USD
IntensityBalanced
