VeloSide Nordic
Together on every turn.
VeloSide Nordic
Together on every turn.
TECHNICAL DOCUMENTATION • GENERATED BY CONJUREANYTHING • ID: jfbhsrgqv

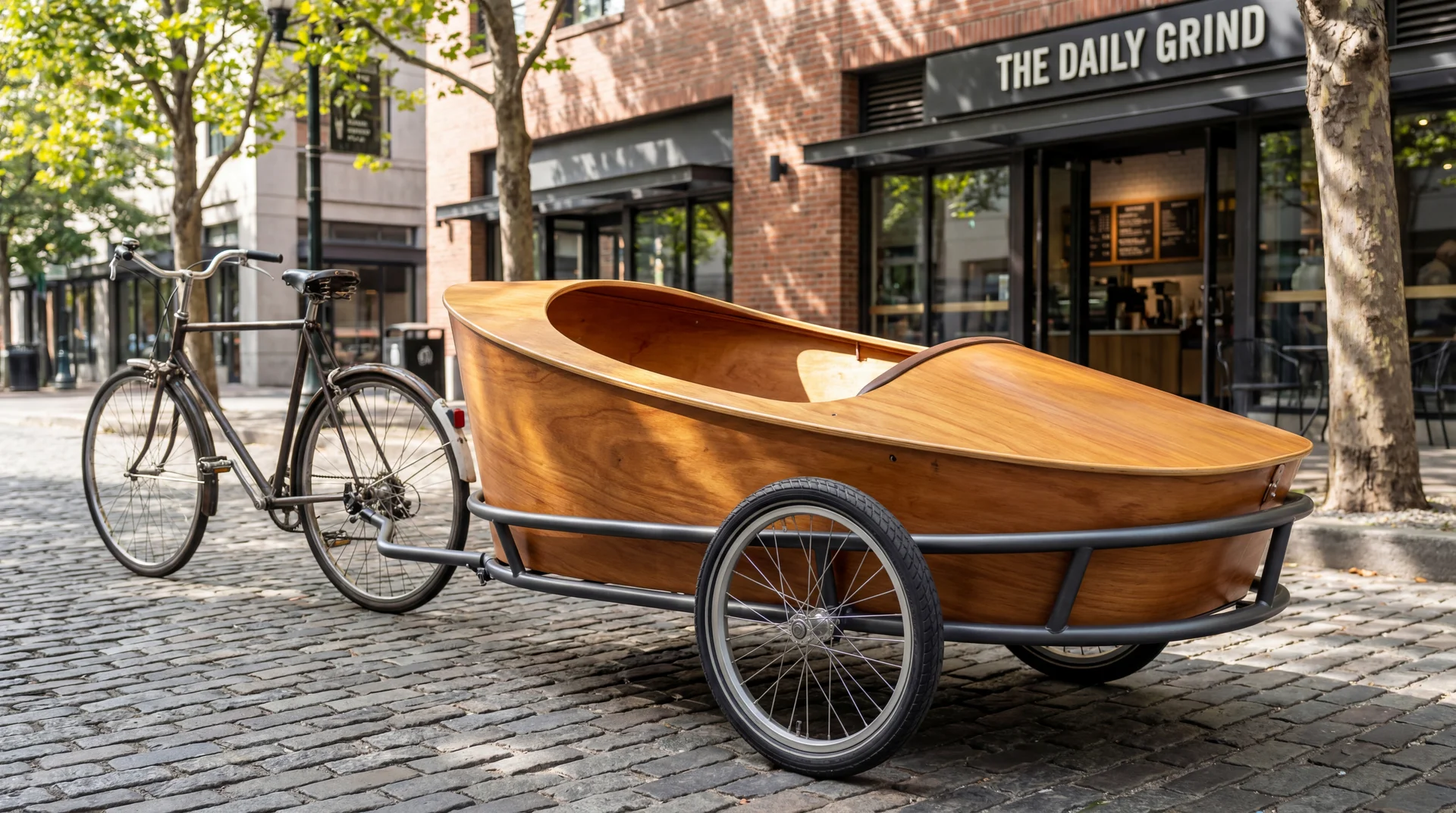

RENDER
Executive Summary
The VeloSide Nordic fills the gap between expensive European cargo bikes and unsafe DIY sidecar solutions. By utilizing a universal Heim-joint hitch system and a bent-plywood monocoque body featuring a spacious top-entry cockpit, this product offers a premium Scandinavian aesthetic at a mid-range price point ($850 MSRP). Designed for urban families, the open-top design allows for easy interaction and visibility while safely transporting children or pets (up to 100 lbs) without requiring a dedicated cargo bike frame.
Technical Specifications
| Dimensions | 48" L x 30" W x 18" H (Cabin) |
| Weight Capacity | 100 lbs (45 kg) payload |
| Frame Material | 6061-T6 Aluminum Alloy, Powder Coated |
| Hitch Mechanism | Dual-axis spherical rod end (Heim joint) with quick-release pin |
| Cabin Configuration | Open-top cockpit with rounded reinforced rim |
| Safety Compliance | ISO 4210-2 compatible; 5-point harness system included |
Manufacturing Analysis
Complexity
Medium
Timeline
6-8 Months (Prototyping to First Batch)
Est. Tooling Cost
$15,000 - $20,000 (Plywood compression molds & welding jigs)
Bill of Materials
| Component | Material | Cost |
|---|---|---|
| Chassis Frame | 1.5" Aluminum 6061-T6 Tubing (12ft) | $45.00 |
| Open-Top Cabin Shell | Marine Grade Baltic Birch Plywood (Bent Lamination with CNC Cutout) | $65.00 |
| Wheel Assembly | 20" Alloy Rim, Hub, Tire, Tube | $38.00 |
| Pivot Hitch | Stainless Steel Rod End Bearings (Heim Joint) + Mount | $22.00 |
| Interior/Soft Goods | EVA Foam Padding + Weather-resistant Fabric | $25.00 |
| Hardware & Fasteners | Stainless Steel M8 Bolts, Nyloc Nuts | $12.00 |
Est. Unit Cost$207.00 (Excluding labor/assembly)
IntensityBalanced
