Vanguard MK-II Mobile Artillery Platform
Smartphone-piloted tactical dominance with dual-projectile capability.
Vanguard MK-II Mobile Artillery Platform
Smartphone-piloted tactical dominance with dual-projectile capability.
TECHNICAL DOCUMENTATION • GENERATED BY CONJUREANYTHING • ID: pkr8qvxdb

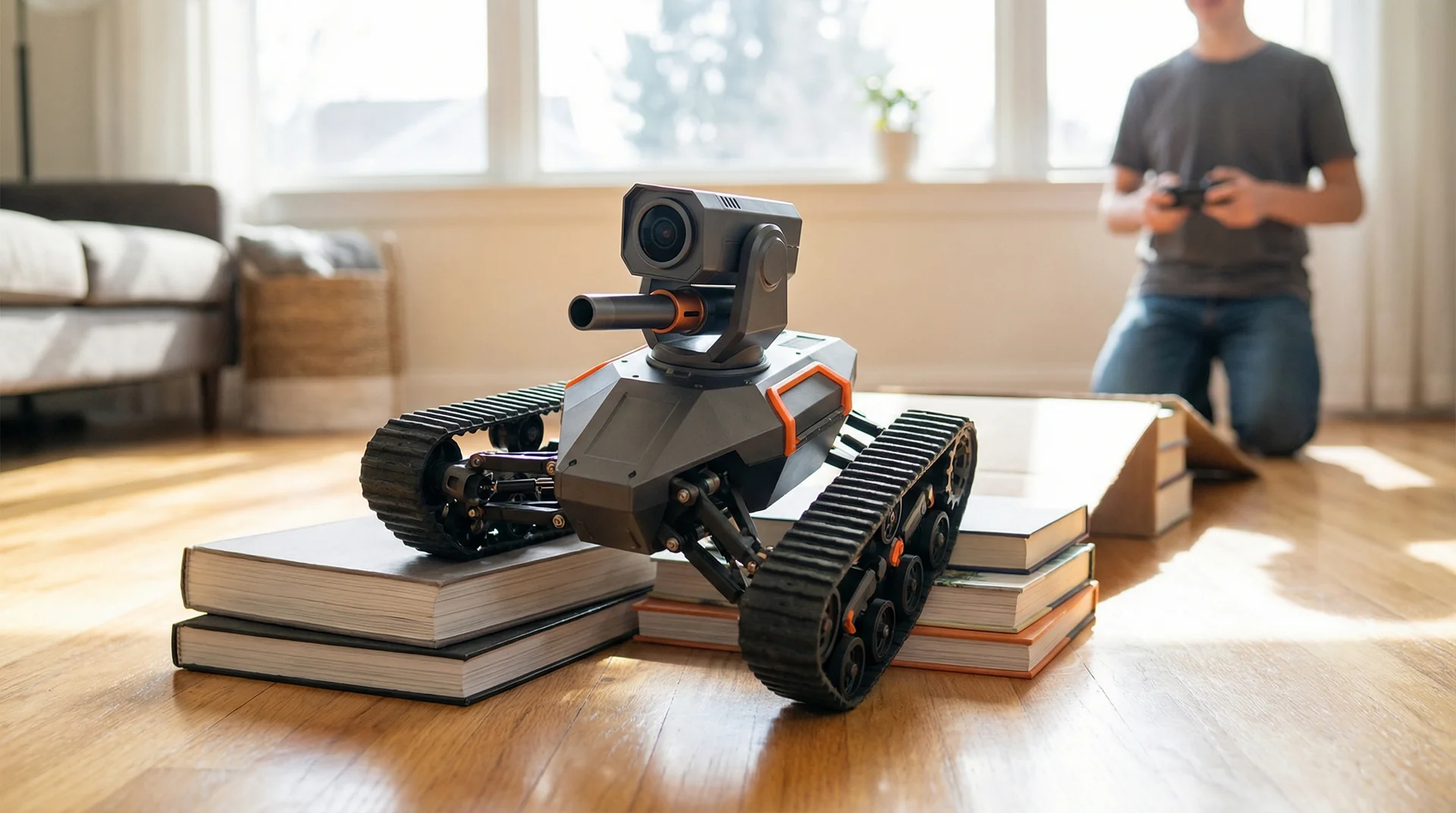

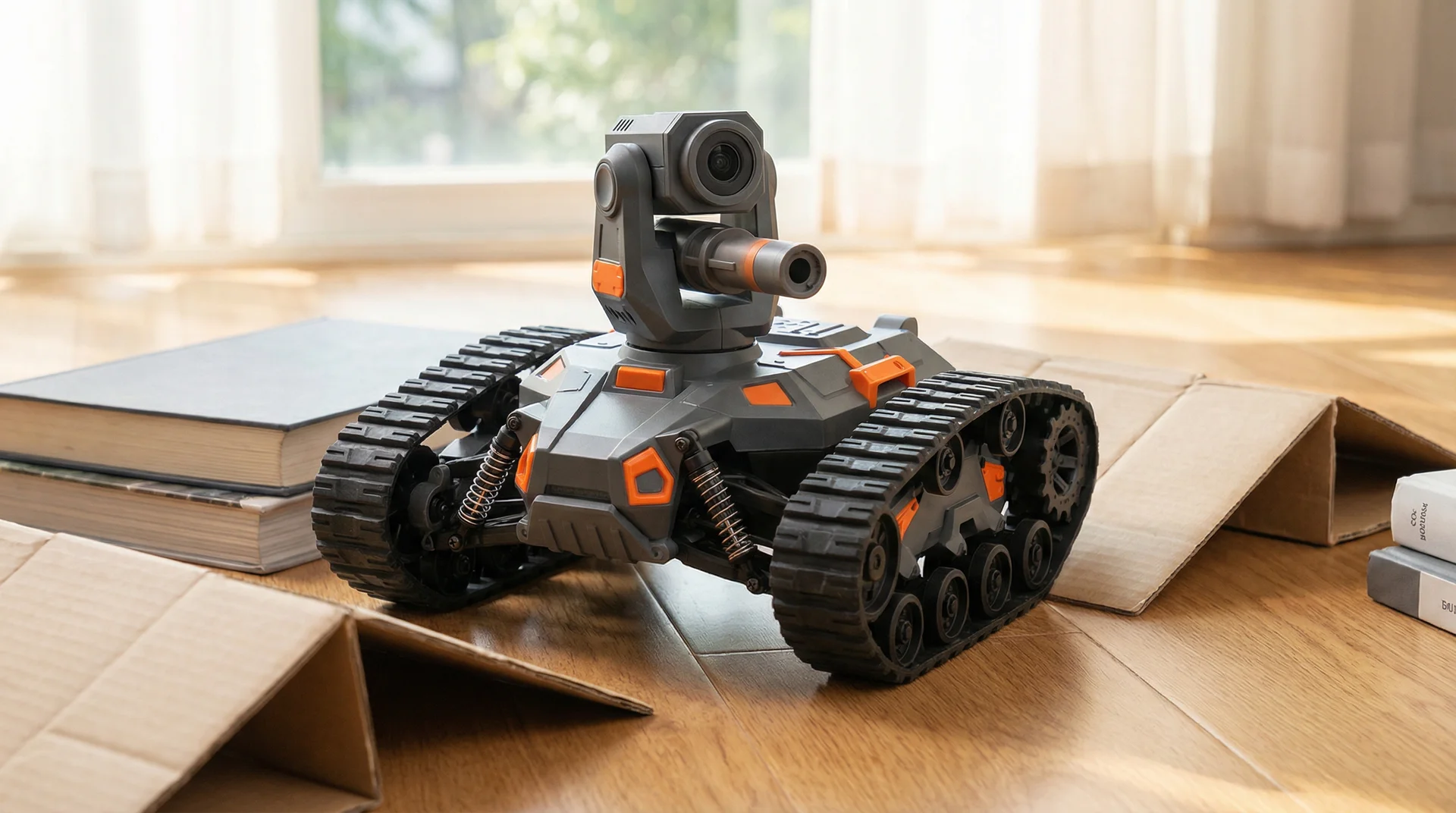

RENDER
Executive Summary
The Vanguard MK-II is an app-controlled FPV (First Person View) tracked vehicle designed for the hobbyist market, featuring a modular turret system that allows users to swap between a 6mm airsoft BB mechanism and a foam dart launcher. Leveraging a direct Wi-Fi connection for low-latency video streaming and control, the device bridges the gap between toy-grade RC cars and hobby-grade robotics.
Technical Specifications
| Connectivity | Wi-Fi 802.11 b/g/n (Direct P2P Mode) |
| Camera Resolution | 720p HD @ 30fps with 120° FOV |
| Drive System | Dual DC Geared Motors with Independent Track Control |
| Battery Life | 25 Minutes (7.4V 2000mAh Li-Po) |
| Firing Mechanism | Modular Electric Airsoft (0.12g BB) / Spring-loaded Foam Dart |
Manufacturing Analysis
Complexity
High
Timeline
9 Months (Design to MP)
Est. Tooling Cost
$45,000 - $60,000 USD
Bill of Materials
| Component | Material | Cost |
|---|---|---|
| Chassis & Turret Shells | Injection Molded High-Impact ABS | $5.50 |
| Microcontroller & Wi-Fi Module | ESP32-S3 SoC Custom PCB | $4.20 |
| Drive Motors (x2) | Brushed DC 380 Motors with Metal Gearbox | $3.80 |
| Camera Module | OV2640 Sensor Module | $2.50 |
| Tracks | Flexible Silicone/Rubber Compound | $1.75 |
| Firing Solenoid/Spring Assembly | Steel/Nylon Hybrid | $3.25 |
Est. Unit Cost$28.00 - $35.00 USD
IntensityBalanced
