Executive Summary

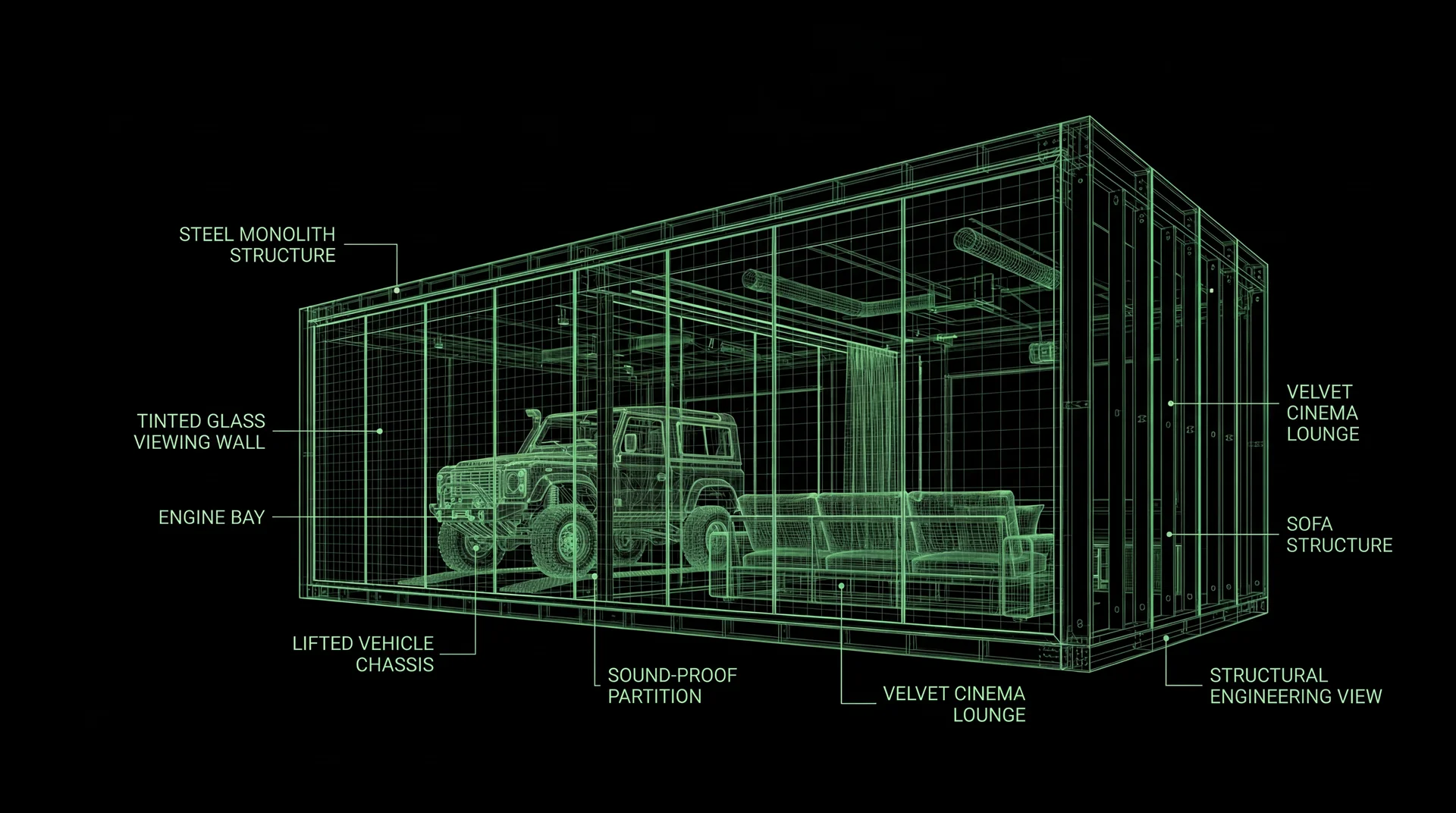

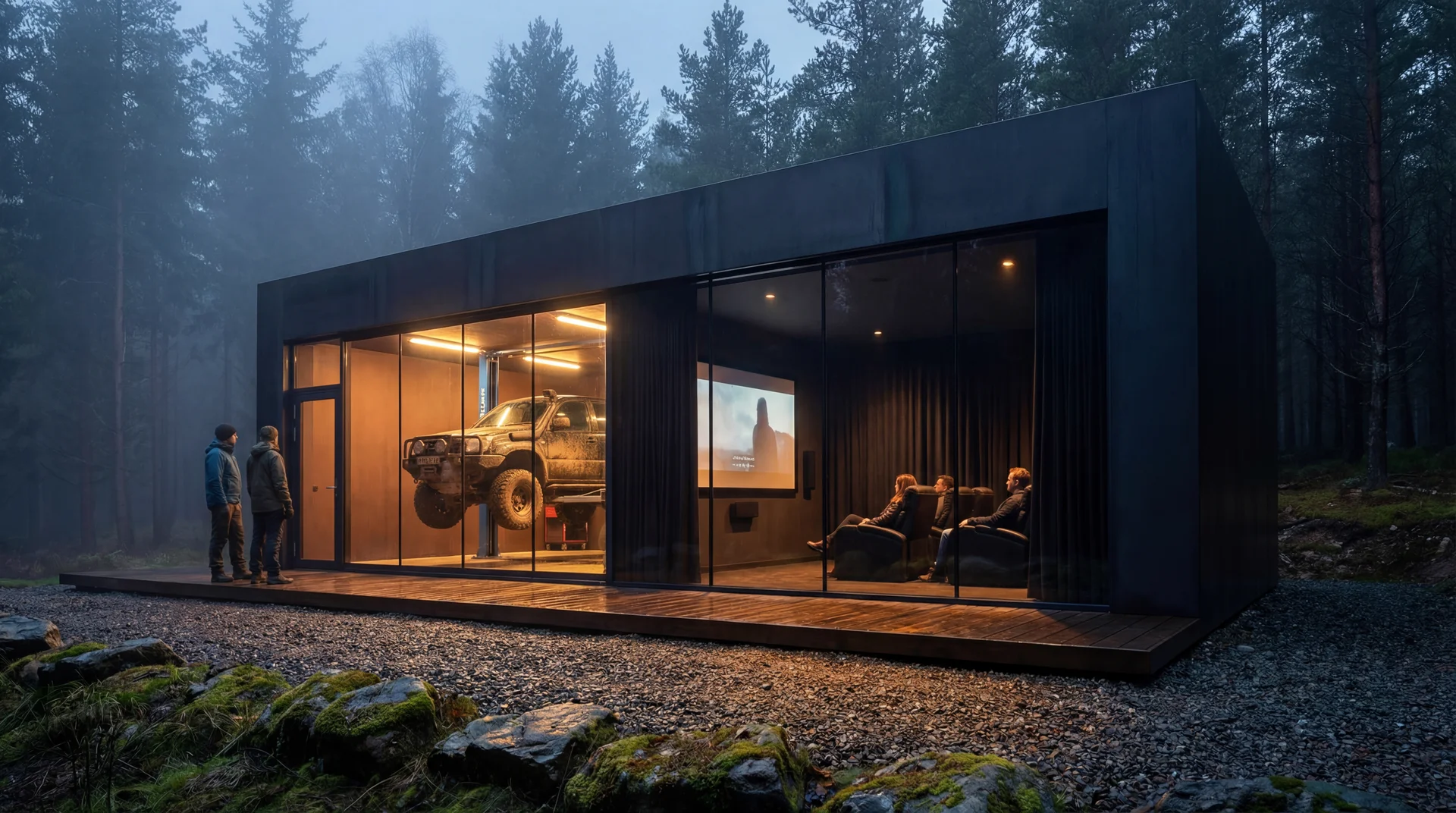

The Apex Sanctum is a turnkey, modular architectural unit designed to serve as the ultimate dual-purpose retreat for the modern automotive enthusiast. Combining a heavy-duty, reinforced steel structure capable of housing a functioning automotive workshop with a high-fidelity, acoustically isolated cinema suite, it offers a seamless transition from high-octane mechanics to immersive entertainment. Delivered as a premium pre-fabricated kit with white-glove installation, it eliminates the complexity of custom construction while providing a bespoke luxury environment.
Technical Specifications

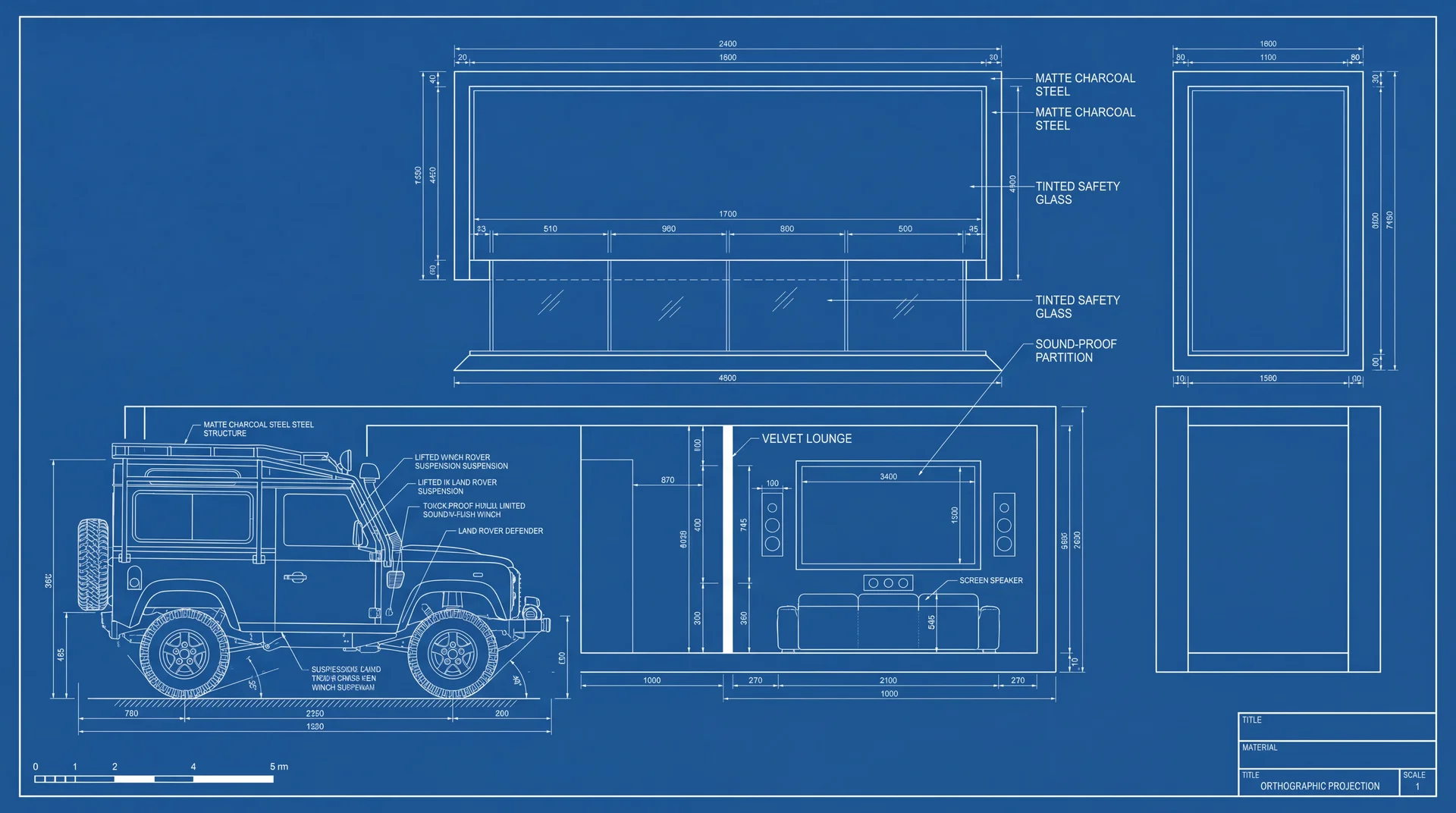

| Footprint | 24' W x 30' D x 12' H (720 sq. ft. total area) |
| Structural Load Rating | Industrial-grade I-beam steel frame, rated for 140mph wind load and 40psf snow load |
| Automotive Lift Capacity | 7,000 lbs (via integrated BendPak GrandPrix GP-7LCS) |
| Acoustic Isolation | STC 52 rated walls using Rockwool Safe'n'Sound + resilient channel mounting |
| Visual System | Native 4K Laser Projection (Sony VPL-XW5000ES) on 120" ALR Screen |
| Automation | Control4 Core Lite Single Room Bundle (Lighting, Climate, AV, Security) |
| Power Requirement | 100A Sub-panel connection (240V for lift/welder, 120V for AV/Lighting) |
Manufacturing Analysis
Bill of Materials
| Component | Material | Cost |
|---|---|---|

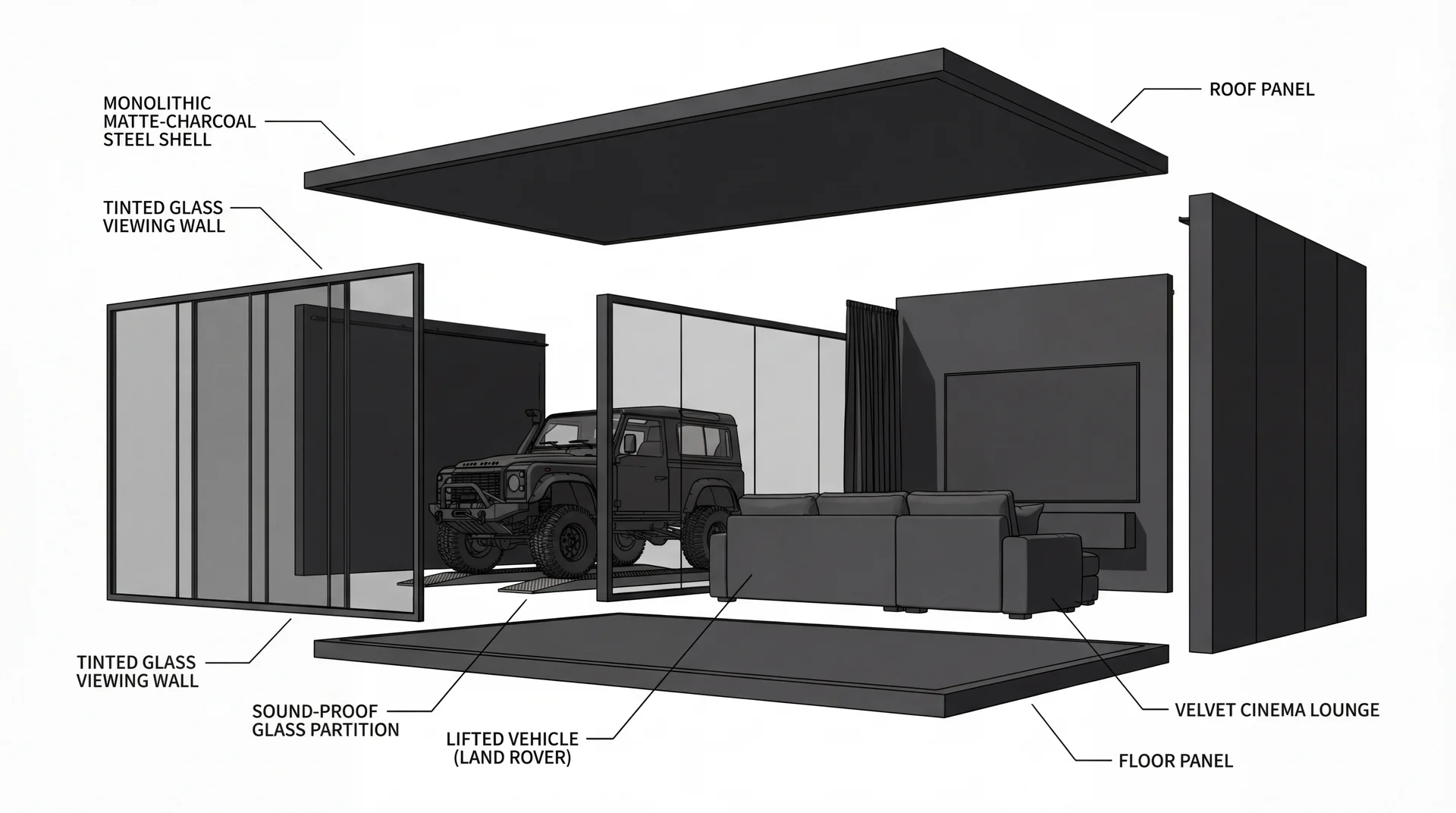

| Structural Shell Kit | Galvanized Steel I-Beam Frame & Insulated Metal Panels (IMP) | $35,000 |
| Automotive Lift | BendPak GrandPrix GP-7LCS (Low Ceiling Model) | $5,200 |
| Cinema Projection System | Sony VPL-XW5000ES 4K Laser Projector + 120" Slate ALR Screen | $7,500 |
| Audio System | KEF Q-Series 5.1.2 Dolby Atmos Speaker Package + Denon AVR | $4,800 |
| Workshop Cabinetry | Sonic Tools MSS+ Modular Storage System (124" Setup) | $10,875 |
| Acoustic Treatment | Rockwool Safe'n'Sound Batts + Acoustic Fabric Panels | $3,200 |
| Smart Automation Core | Control4 Core Lite Controller + Halo Remote | $1,200 |
| Interior Finishes | Polished Concrete Sealer, LED Hexagon Grid Lighting, Industrial Carpet | $6,500 |
