Luma Drop
Insight, worn close to the heart.
Luma Drop
Insight, worn close to the heart.
TECHNICAL DOCUMENTATION • GENERATED BY CONJUREANYTHING • ID: 63go7cwew
RENDER
Executive Summary
The Luma Drop is an ultra-compact, 1-inch wearable AI endpoint designed to unobtrusively capture audio and visual context. Functioning as a Bluetooth LE tethered companion, it utilizes a high-efficiency SoC to stream encrypted data to a host device for processing, featuring a distinct flat teardrop aesthetic that merges jewelry with technology.
Technical Specifications

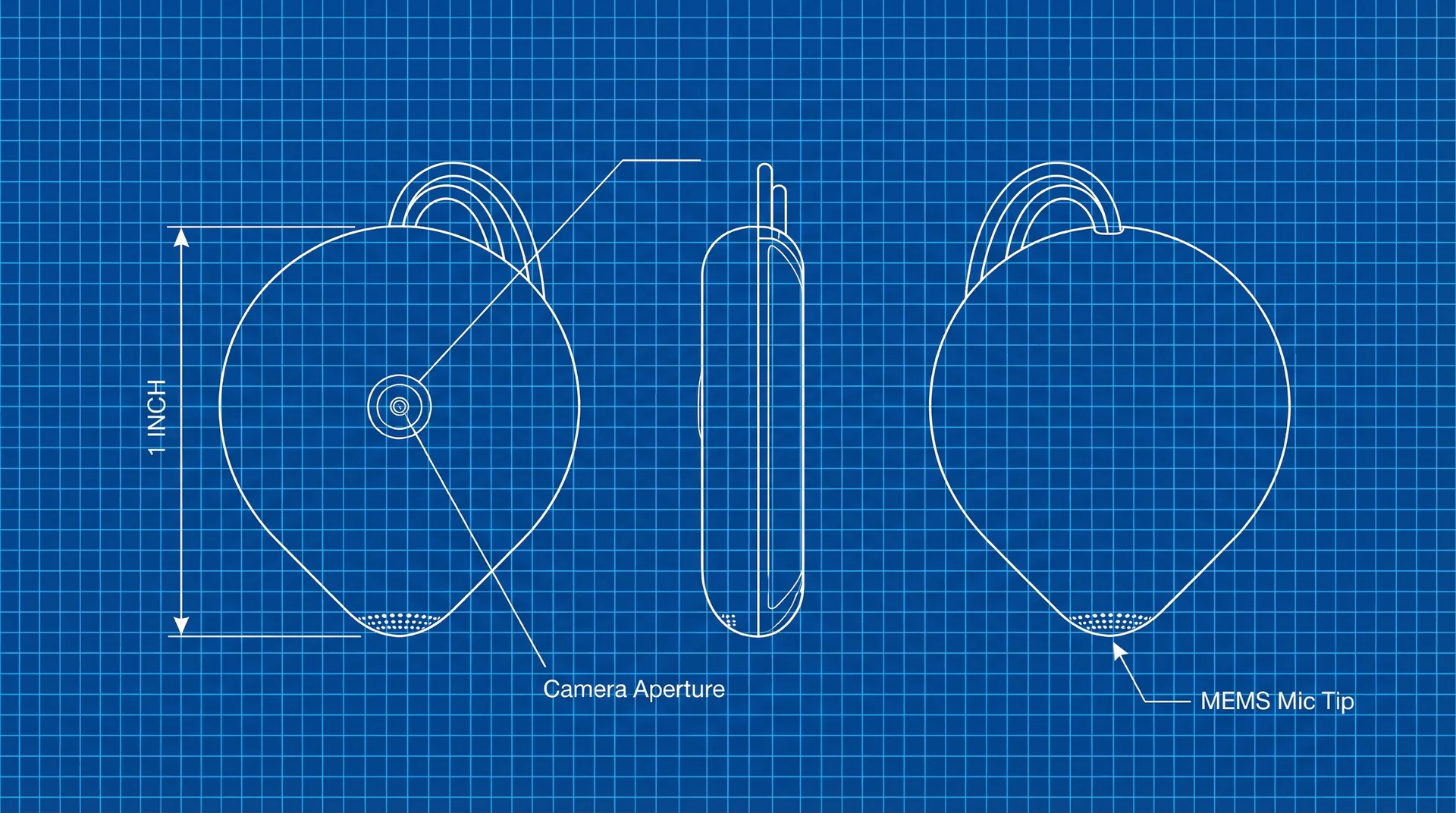

| Dimensions | 25.4mm (H) x 18mm (W) x 6.5mm (D) |
| Weight | 14 grams |
| Camera | 8MP Ultra-Compact CMOS, f/2.2 aperture, 120-degree FOV |
| Microphone | Single MEMS with beamforming and wind-noise reduction |
| Connectivity | Bluetooth 5.3 LE (Low Energy) |
| Battery | 120mAh Custom Shaped Li-Po (12-hour standby) |
| Processor | Low-power ARM Cortex-M33 based SoC |
Manufacturing Analysis
Complexity
High
Timeline
8-10 Months
Est. Tooling Cost
$45,000 - $60,000 USD

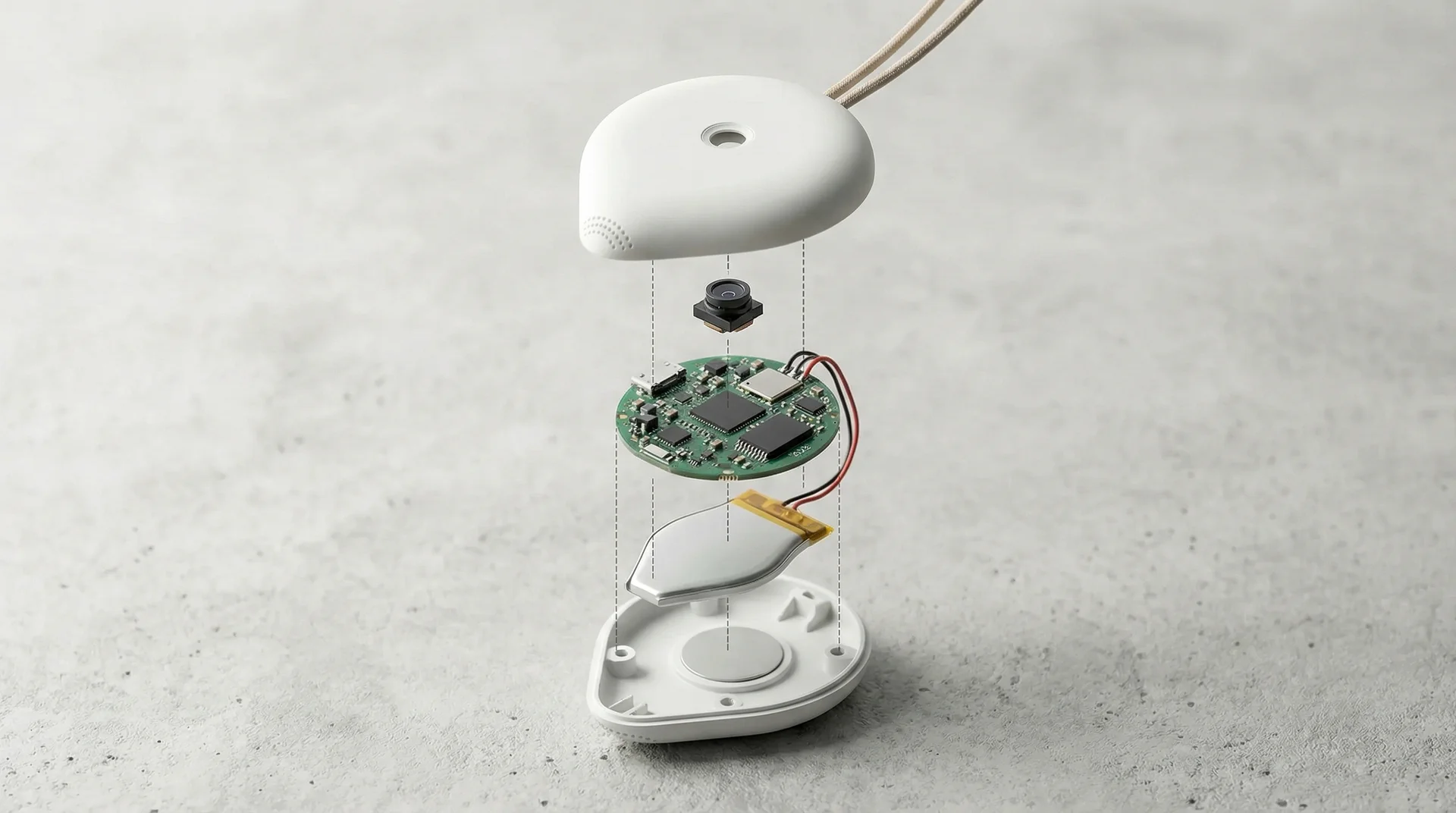

Bill of Materials
| Component | Material | Cost |
|---|---|---|
| SoC (BLE/Audio/ISP) | Silicon (e.g., nRF5340 or similar) | 3.50 |
| Camera Module | CMOS Sensor + Lens Assembly | 5.20 |
| Housing Enclosure | Injection Molded Polycarbonate (Ceramic Finish) | 0.85 |
| Battery | Lithium Polymer (Teardrop custom shape) | 2.80 |
| PCB & Flex Cables | FR4 / Polyimide | 1.50 |
| MEMS Microphone | Silicon | 0.65 |
| Magnetic Clasp/Lanyard | Neodymium Magnets + Woven Cord | 1.10 |
Est. Unit Cost$22.00 - $28.00 USD
IntensityBalanced
Refinements update specs + costs and generate new renders. Approve in Review to generate the full schematic suite.
