Lithos Glow
Nature-inspired power. Serene illumination.
Lithos Glow
Nature-inspired power. Serene illumination.
TECHNICAL DOCUMENTATION • GENERATED BY CONJUREANYTHING • ID: tr9e9wa26

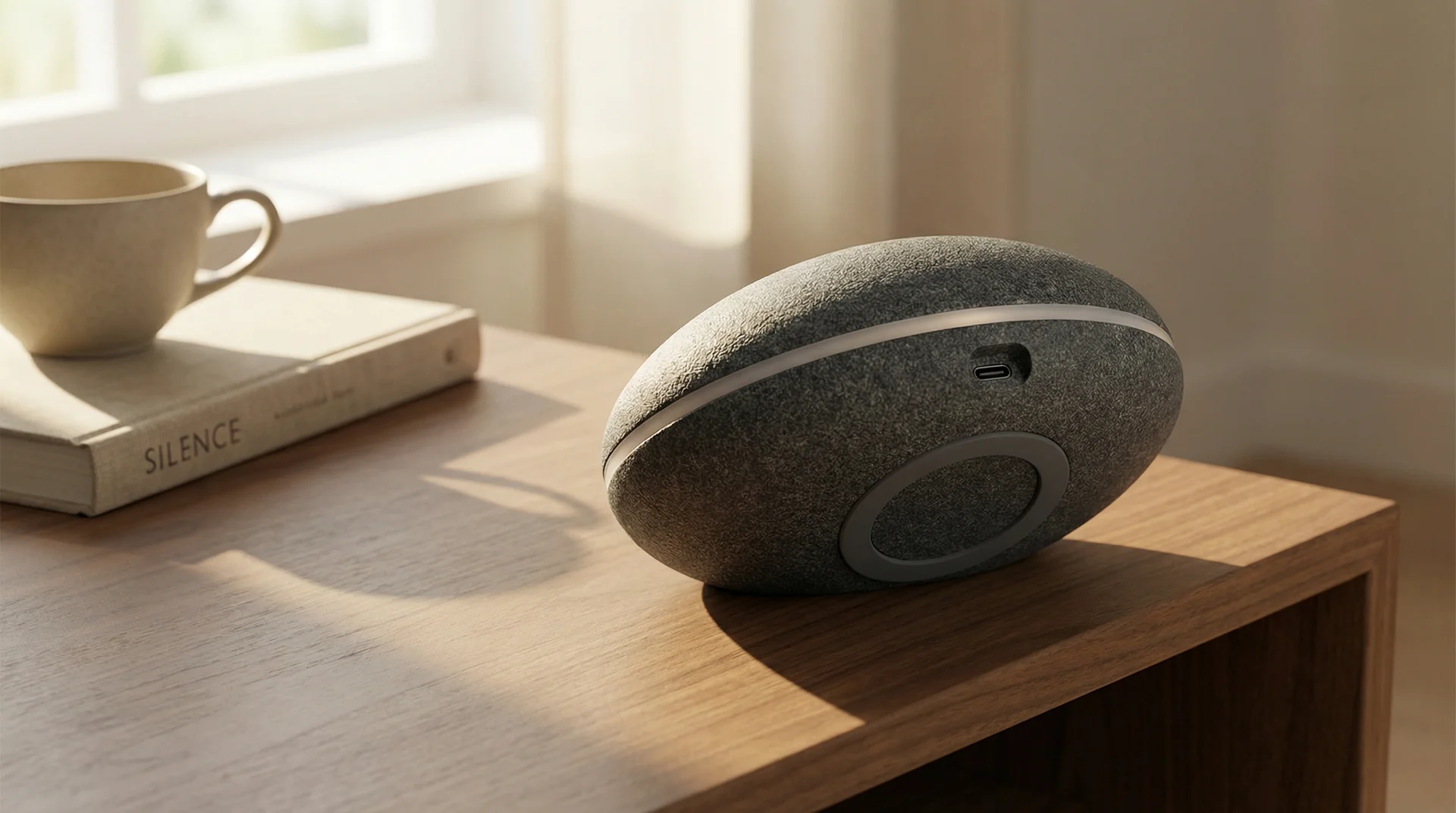

RENDER
Executive Summary
The Lithos Glow is a 15W Qi-certified wireless charging pad designed to mimic the organic, asymmetrical form of a polished river stone. It integrates a hidden sub-surface LED array that emits a rhythmic, warm 'breathing' light through a translucent equatorial seam to indicate charging status, blending high-speed technology seamlessly into minimalist interior decor.
Technical Specifications
| Charging Standard | Qi 1.3 Extended Power Profile (EPP) |
| Max Output | 15W Wireless Fast Charge |
| Input Interface | USB-C (PD 3.0 Compatible) |

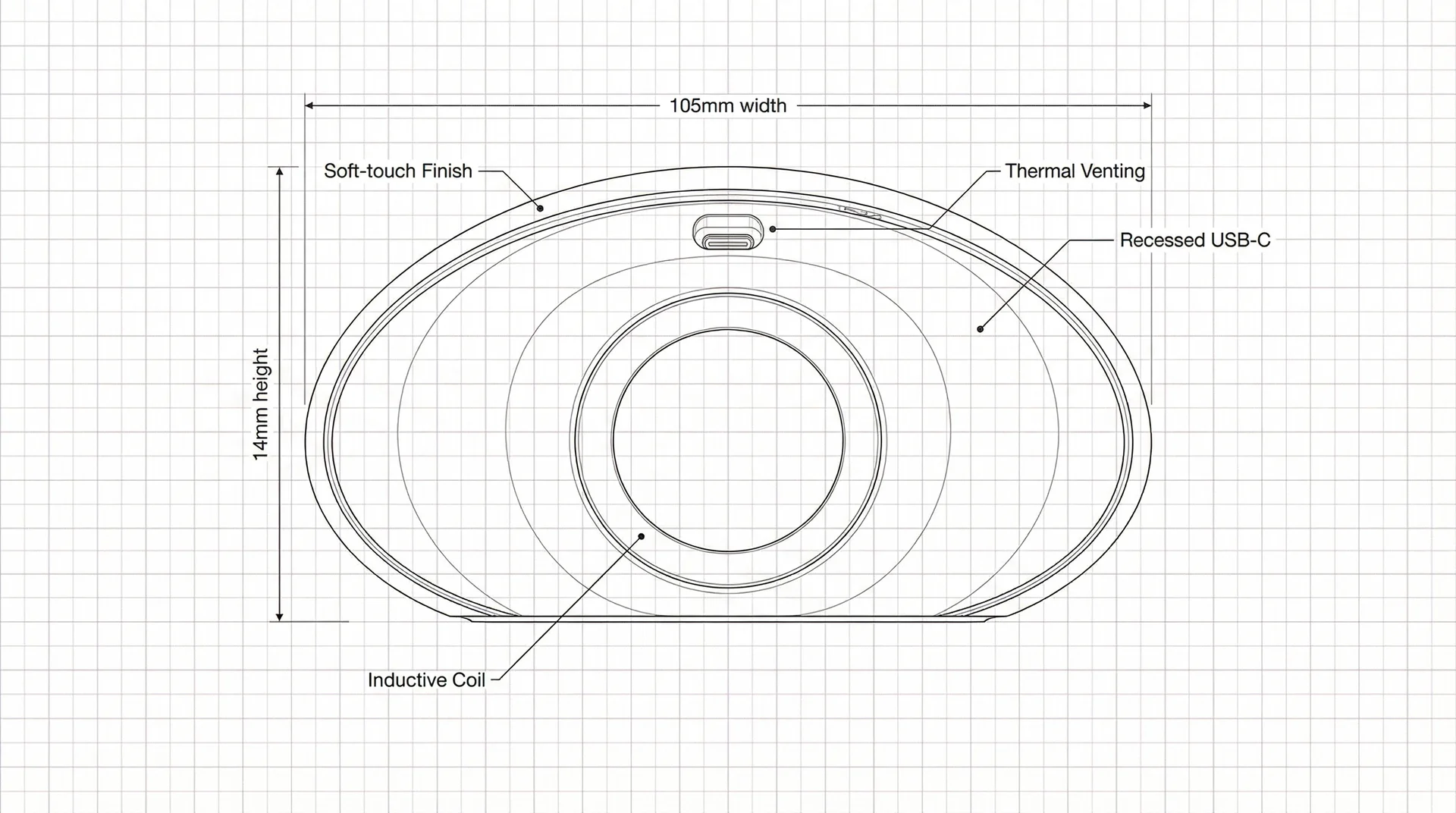

| Dimensions | 105mm x 88mm x 14mm (Asymmetrical Ovoid) |
| Lighting | 360-degree hidden LED diffuser, 2700K Warm White |
Manufacturing Analysis
Complexity
Medium
Timeline
5 Months (DVT to MP)
Est. Tooling Cost
22,000 USD

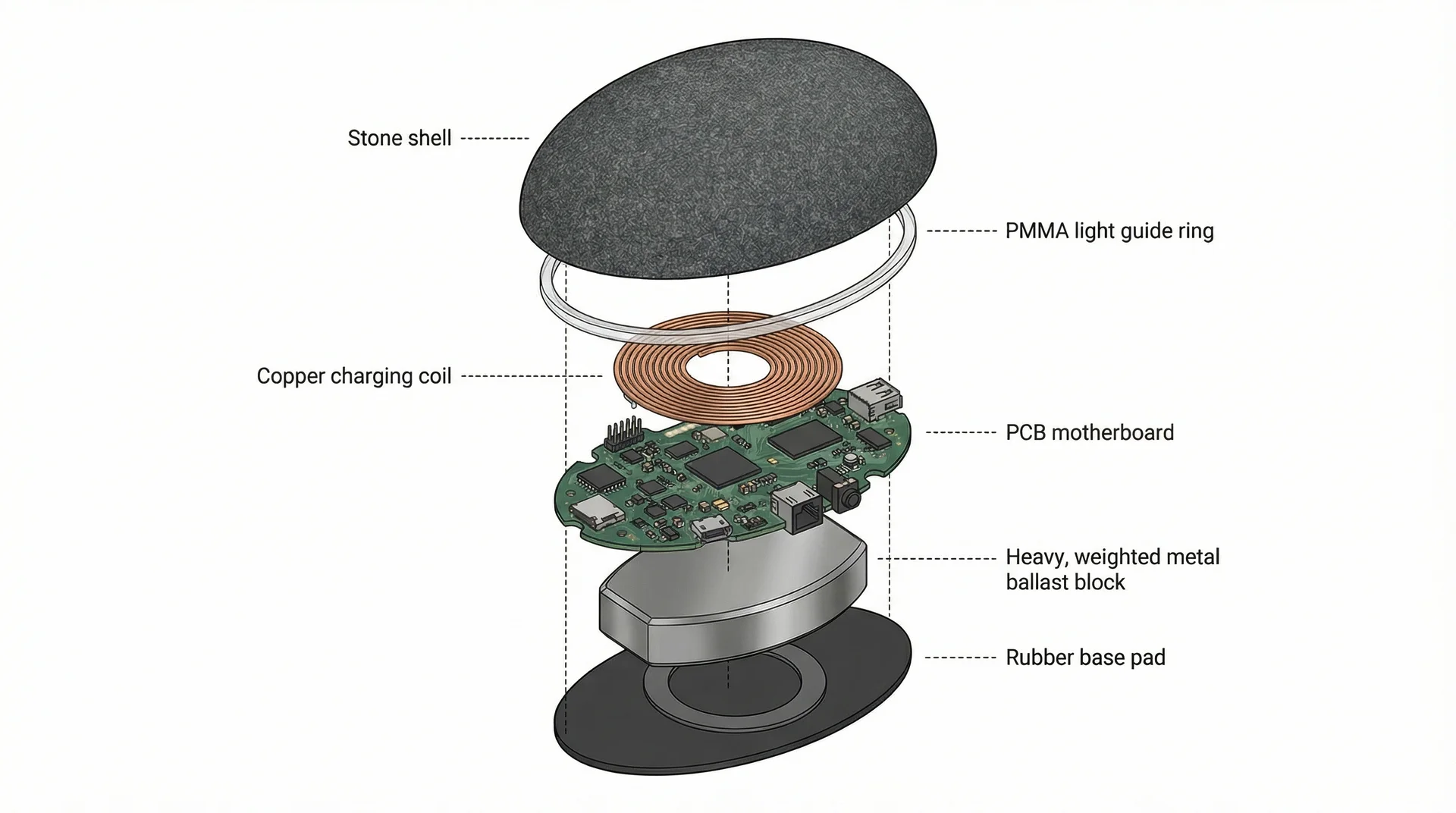

Bill of Materials
| Component | Material | Cost |
|---|---|---|
| Top Housing | Injection Molded PC/ABS with Soft-Touch Stone Texture Paint | 1.80 USD |
| Inductive Coil Module | Copper Litz Wire + Ferrite Shielding Sheet | 3.20 USD |
| Main PCB | FR4 Board, Power Management IC, MCU | 4.50 USD |
| Light Guide | Translucent PMMA (Frosted) | 0.75 USD |
| Weighted Base | Zinc Alloy insert + Silicone Non-slip Footer | 2.10 USD |
Est. Unit Cost14.50 USD
IntensityBalanced
