Kippo
Your friendly, focus-enhancing desk companion.
Kippo
Your friendly, focus-enhancing desk companion.
TECHNICAL DOCUMENTATION • GENERATED BY CONJUREANYTHING • ID: lj125rdeo

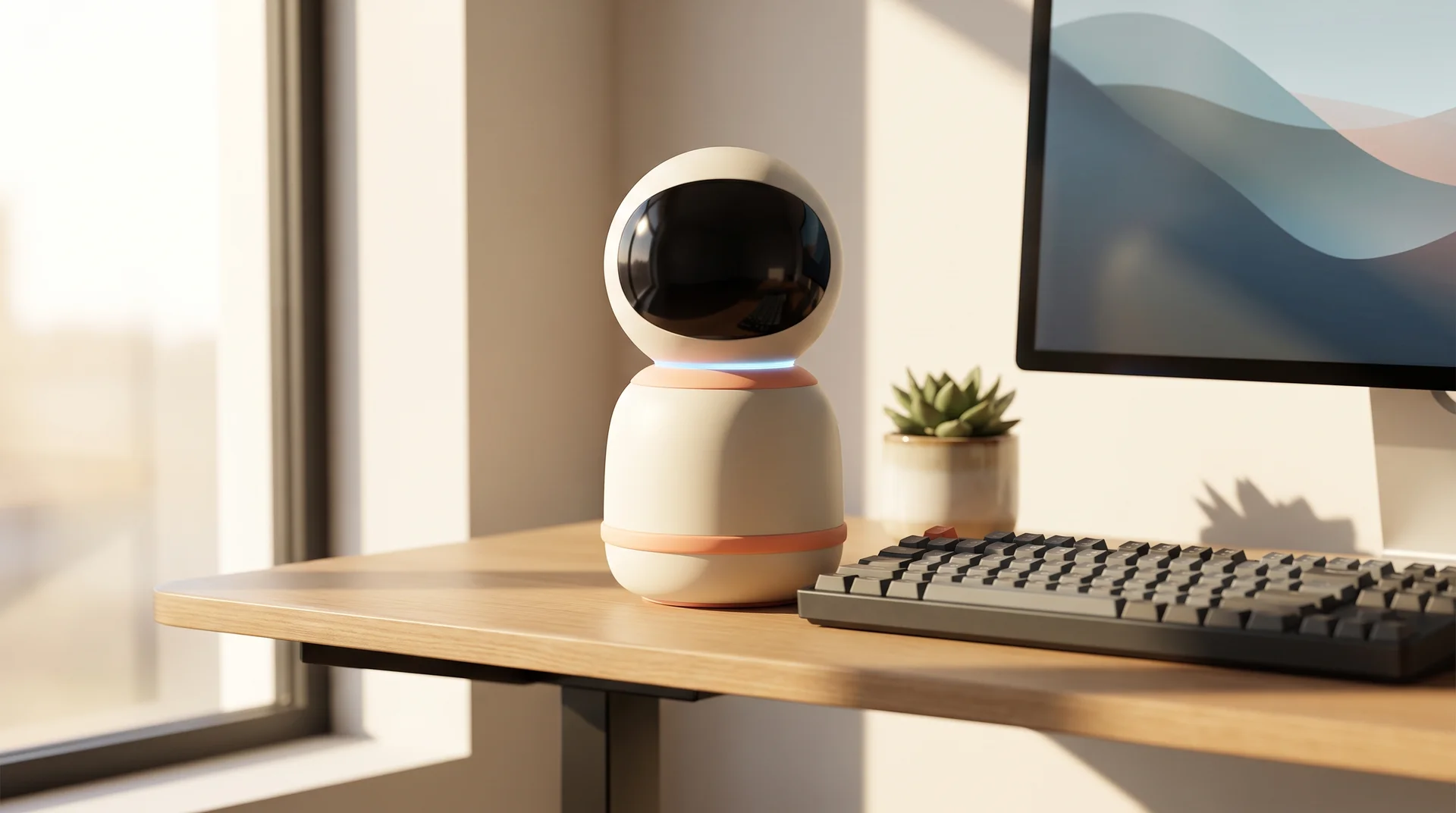

RENDER
Executive Summary
Kippo is a compact, manufacturable desktop robot designed to provide ambient notifications, pomodoro tracking, and simple interactive companionship. Utilizing standard off-the-shelf servos, an ESP32 microcontroller, and injection-molded ABS plastics, it balances expressive personality with low-cost, scalable production.
Technical Specifications
| Dimensions | 120mm (H) x 85mm (W) x 85mm (D) |
| Weight | 320g |
| Microcontroller | ESP32-WROOM-32D (Wi-Fi/Bluetooth enabled) |
| Actuation | 3x SG90 Micro Servos (2-axis neck, 1-axis base rotation) |
| Display | 1.54" OLED Matrix (128x64) for expressive eyes |
| Sensors | Capacitive touch (top of head), Ambient Light Sensor (LDR) |
| Power | USB-C (5V, 1A) - Tethered, no internal battery for compliance simplicity |
Manufacturing Analysis
Complexity
Medium
Timeline
6-8 months
Est. Tooling Cost
$15,000 - $20,000
Bill of Materials
| Component | Material | Cost |
|---|---|---|
| Main Enclosure (Head, Base, Body) | Injection Molded ABS (Matte Finish) | $2.50 |
| Faceplate | Tinted Polycarbonate (Glossy) | $0.60 |
| Microcontroller Board | Custom ESP32 PCBA | $4.50 |
| Display | 1.54" OLED Screen Module | $3.20 |
| Actuators | 3x SG90 Micro Servos | $3.00 |
| Sensors & Power | Capacitive pad, LDR, USB-C Receptacle, Passives | $1.20 |
| Hardware & Assembly | M2/M3 Screws, rubber feet, brass threaded inserts | $0.50 |
| Packaging | Recycled cardboard box with molded pulp insert | $1.00 |
Est. Unit Cost$16.50 (at 10,000 unit volume)
IntensityBalanced
Refinements update specs + costs and generate new renders. Approve in Review to generate the full schematic suite.
