Ignis-X8 'Sprint' Defense System
Rapid Response. Immediate Suppression.
Ignis-X8 'Sprint' Defense System
Rapid Response. Immediate Suppression.
TECHNICAL DOCUMENTATION • GENERATED BY CONJUREANYTHING • ID: 6odrowpws

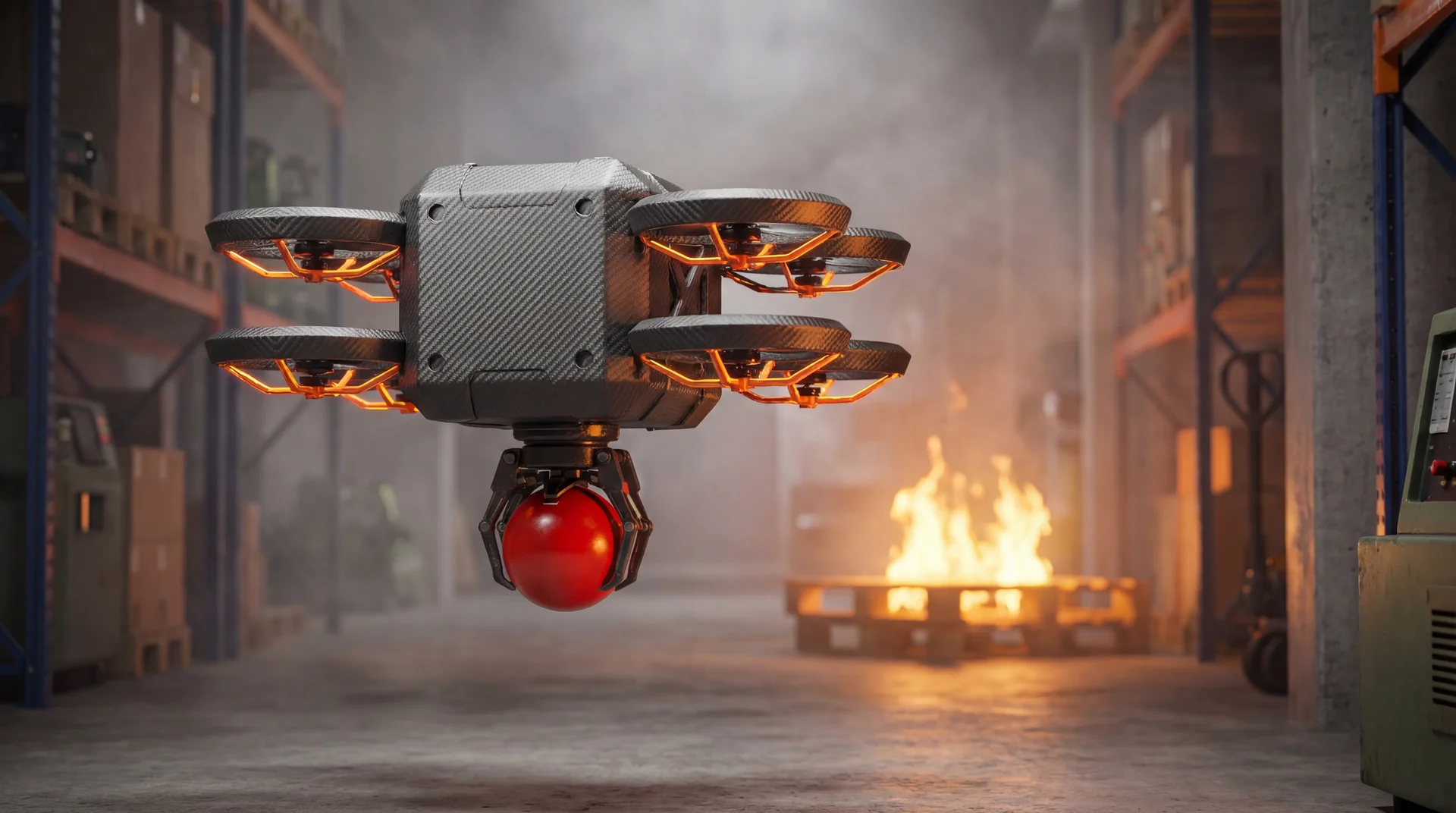

RENDER
Executive Summary
The Ignis-X8 is a compact, high-velocity aerial fire suppression system designed to bridge the gap between heavy industrial lift drones and consumer quadcopters. Utilizing a 'Cinelifter' X8 coaxial motor configuration, it delivers massive thrust in a sub-400mm footprint, allowing it to sprint to a fire source within a 1km radius in under 60 seconds. The system deploys a 1.3kg auto-activating fire extinguishing ball or dual 400g mini-charges, neutralizing early-stage combustion events before they escalate.
Technical Specifications
| Airframe Configuration | X8 Coaxial Octocopter (8 motors, 4 arms) |
| Wheelbase | 380mm (Compact 'Mini' Class) |
| Propulsion | 8x T-Motor F90 (2806.5) 1300KV Brushless Motors |
| Payload Capacity | 1.5 kg Max (Optimized for 1.3kg AFO Fire Ball) |
| Flight Time (Loaded) | 4-6 Minutes (Sprint Profile) |
| Max Speed | 140 km/h (87 mph) |
| Operational Range | 1.5 km (LOS / Signal Penetration Optimized) |
| Suppression Agent | Mono-ammonium phosphate (Dry Chemical) via Impact/Heat Activation |
Manufacturing Analysis
Complexity
Medium
Timeline
4-6 Months (Prototyping to Pilot Run)
Est. Tooling Cost
$15,000 - $25,000 (Injection molds for protective shell & cradle)
Bill of Materials
| Component | Material | Cost |
|---|---|---|
| Carbon Fiber X8 Frame Kit | 3K Twill Carbon Fiber, 7075 Aluminum Hardware | $280.00 |
| Propulsion System (x8) | T-Motor F90 Motors + HQProp 7x4x3 Props | $360.00 |
| Flight Stack (FC + ESC) | F7 Flight Controller + 2x 60A 4-in-1 ESCs | $220.00 |
| Digital Video Link | DJI O3 Air Unit or Walksnail Avatar (Low Latency HD) | $230.00 |
| Drop Mechanism | CNC Aluminum Servo Release + 3D Printed Cradle | $45.00 |
| Power Source | 6S 4500mAh 120C LiPo Battery | $85.00 |
| Fire Suppression Payload | 1.3kg AFO Fire Extinguisher Ball (Consumable) | $25.00 |
Est. Unit Cost$1,100 - $1,300 (Hardware only, excluding R&D)
IntensityBalanced
