FluxGrid™ Modular Power Desk System
One Cable. Infinite Layouts. Zero Clutter.
FluxGrid™ Modular Power Desk System
One Cable. Infinite Layouts. Zero Clutter.
TECHNICAL DOCUMENTATION • GENERATED BY CONJUREANYTHING • ID: dvm1dsmy6

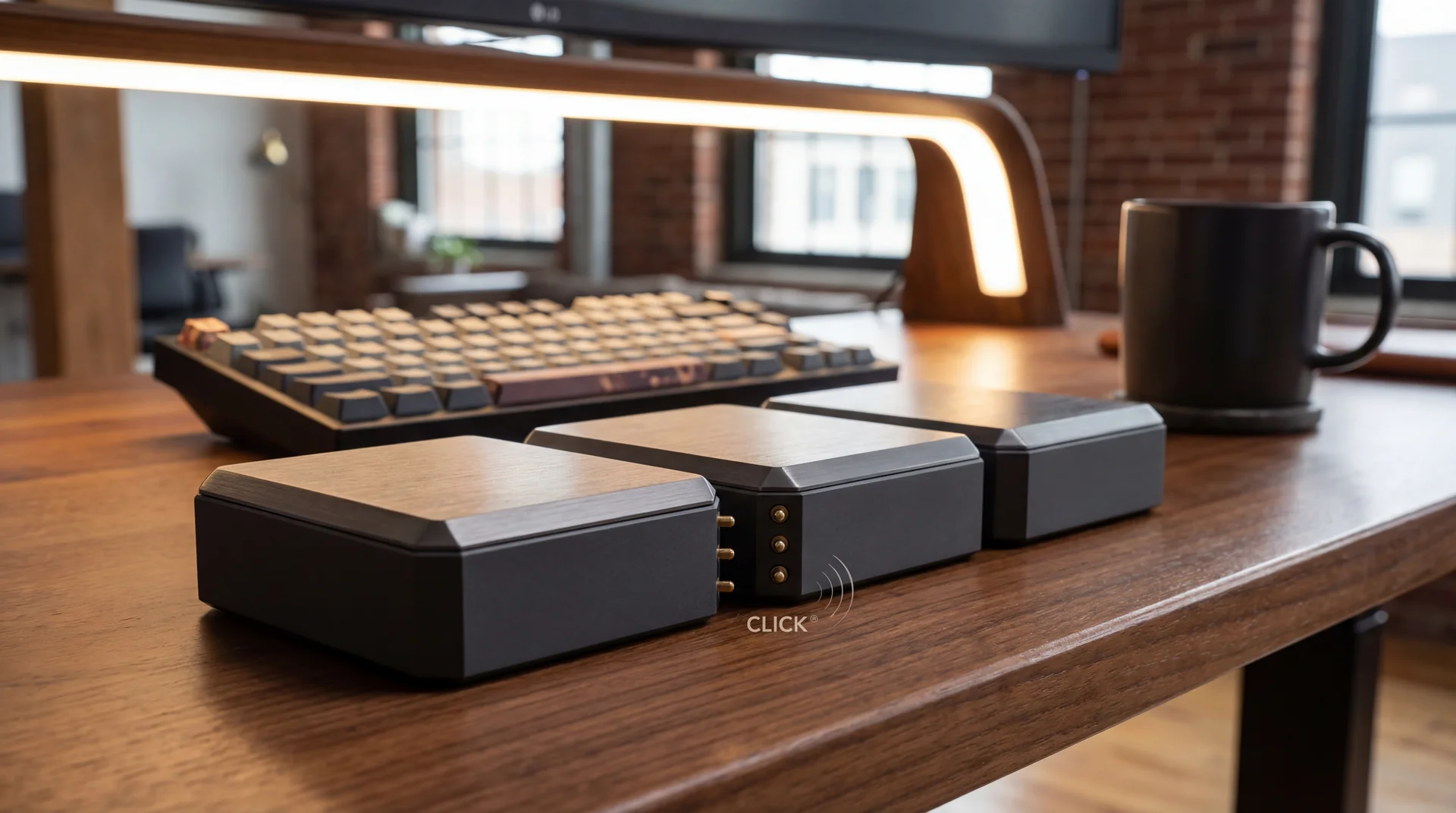

RENDER
Executive Summary
The FluxGrid™ is a premium modular desk organization system that eliminates cable clutter through a proprietary 'Power-Pass' magnetic rail. Unlike standard organizers, only the primary 'Core Module' connects to a wall outlet; all subsequent modules (wireless chargers, lamps, USB hubs) snap magnetically to the Core, receiving power instantly via integrated 5-pin pogo connectors. Designed for the high-end home office market, it combines the tactile satisfaction of N52 magnetic coupling with the utility of Qi2 15W fast charging.
Technical Specifications
| Wireless Standard | Qi2 Certified (15W Fast Charging with Magnetic Alignment) |
| Inter-Module Connection | 5-Pin Gold-Plated Magnetic Pogo Bus (12V/3A Power + Data Passthrough) |
| Magnetic Strength | N52 Neodymium Arrays (1.2kg pull force per connection) |
| Input Power | USB-C PD 3.0 (Minimum 30W input required for full hub operation) |
| Material Finish | Soft-touch Polycarbonate body with Anodized Aluminum top plates |
Manufacturing Analysis
Complexity
High
Timeline
6-8 Months (EVT/DVT/PVT phases required for Qi2 certification)
Est. Tooling Cost
$45,000 - $60,000 (Family mold for 4 module variations + die casting for aluminum plates)
Bill of Materials
| Component | Material | Cost |
|---|---|---|
| Qi2 Wireless Charging Module (15W) | PCBA + Copper Coil + Magnetic Array | $5.50 |
| Magnetic Pogo Pin Connector Set (Male+Female) | Gold-plated Brass, Neodymium, Plastic Housing | $1.10 |
| Structural Magnets (x8 per module) | N52 Neodymium Disc | $1.60 |
| Module Housing (Main Body) | Injection Molded ABS/PC Blend with Soft-Touch Coating | $1.85 |
| Decorative Top Plate | CNC Machined Aluminum (Bead Blasted) | $3.20 |
| Weighted Base Plate | Steel (Stamped) with Silicone Non-Slip Foot | $0.95 |
Est. Unit Cost$18.00 - $24.00 (Blended average across Core and Add-on modules)
IntensityBalanced
