Chronos Feeder Pro
Precision Nutrition, Anytime, Anywhere.
Chronos Feeder Pro
Precision Nutrition, Anytime, Anywhere.
TECHNICAL DOCUMENTATION • GENERATED BY CONJUREANYTHING • ID: hgvu9nb6l

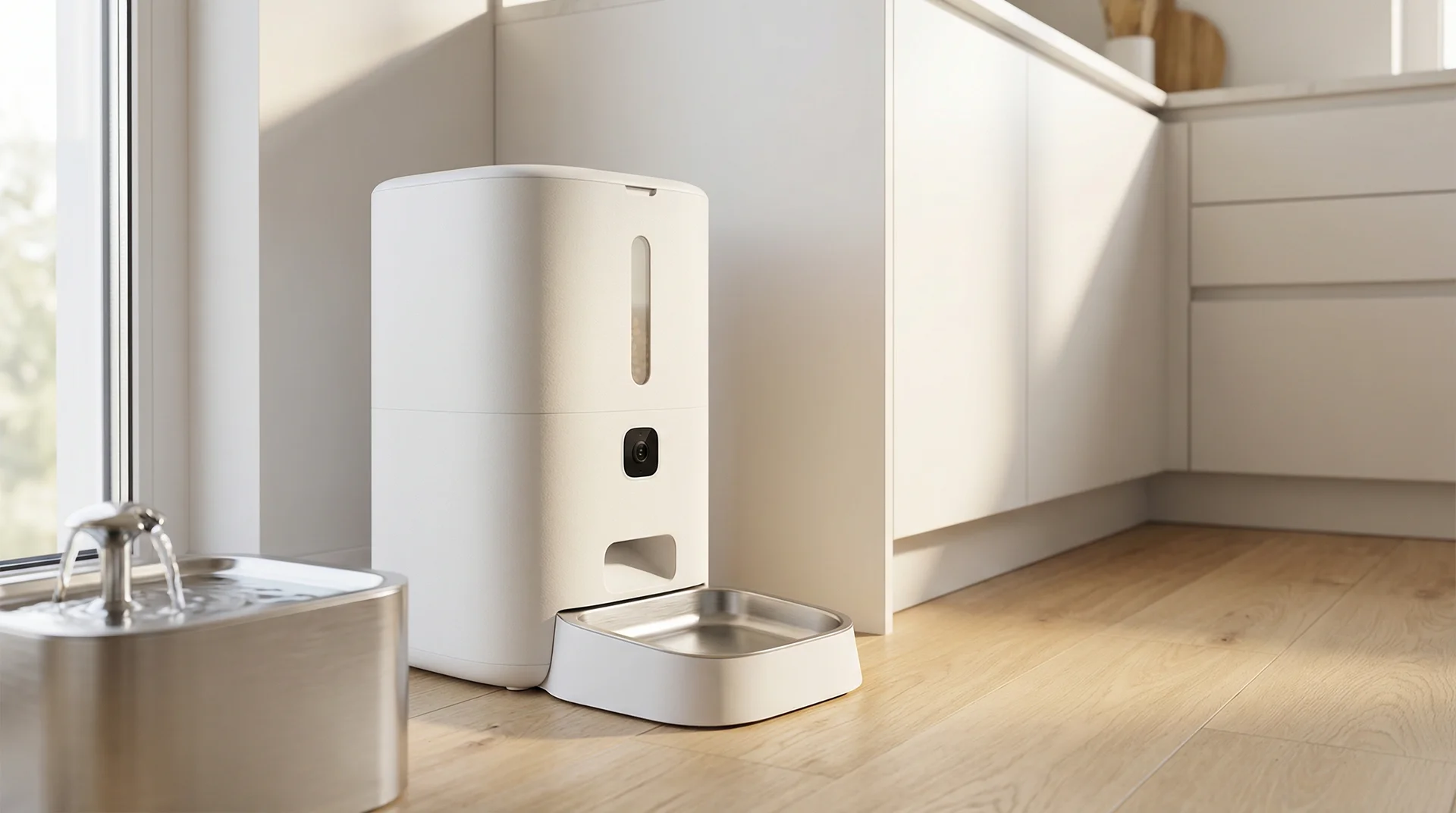

RENDER
Executive Summary
The Chronos Feeder Pro is an IoT-enabled automated pet feeding system featuring a 1080p wide-angle camera for remote monitoring and interaction. It utilizes a dual-power supply system and a patented anti-jamming dispensing mechanism to ensure reliable feeding schedules managed via a mobile application.
Technical Specifications
| Hopper Capacity | 6 Liters (approx. 2.5kg dry food) |
| Connectivity | Wi-Fi 802.11 b/g/n (2.4GHz) + Bluetooth 5.0 LE |
| Camera | 1080p HD, 130° Wide Angle, IR Night Vision |
| Power System | 5V DC USB-C Input / 3x D-Cell Battery Backup |
| Dispensing Mechanism | High-torque stepper motor with silicone impeller |
Manufacturing Analysis
Complexity
Medium
Timeline
5-7 Months
Est. Tooling Cost
$22,000 - $28,000 USD
Bill of Materials
| Component | Material | Cost |
|---|---|---|
| Main Housing & Hopper | Injection Molded ABS (Food Grade) | $5.50 |
| Main PCB Assembly | FR4, ESP32 SoC, Motor Driver, PMIC | $7.20 |
| Camera Module | CMOS Sensor, Lens Assembly, IR LEDs | $4.10 |
| Motor Assembly | Stepper Motor, Nylon Gears, Silicone Paddles | $3.80 |
| Feeding Bowl | 304 Stainless Steel | $2.50 |
Est. Unit Cost$28.00 - $34.00 USD
IntensityBalanced
