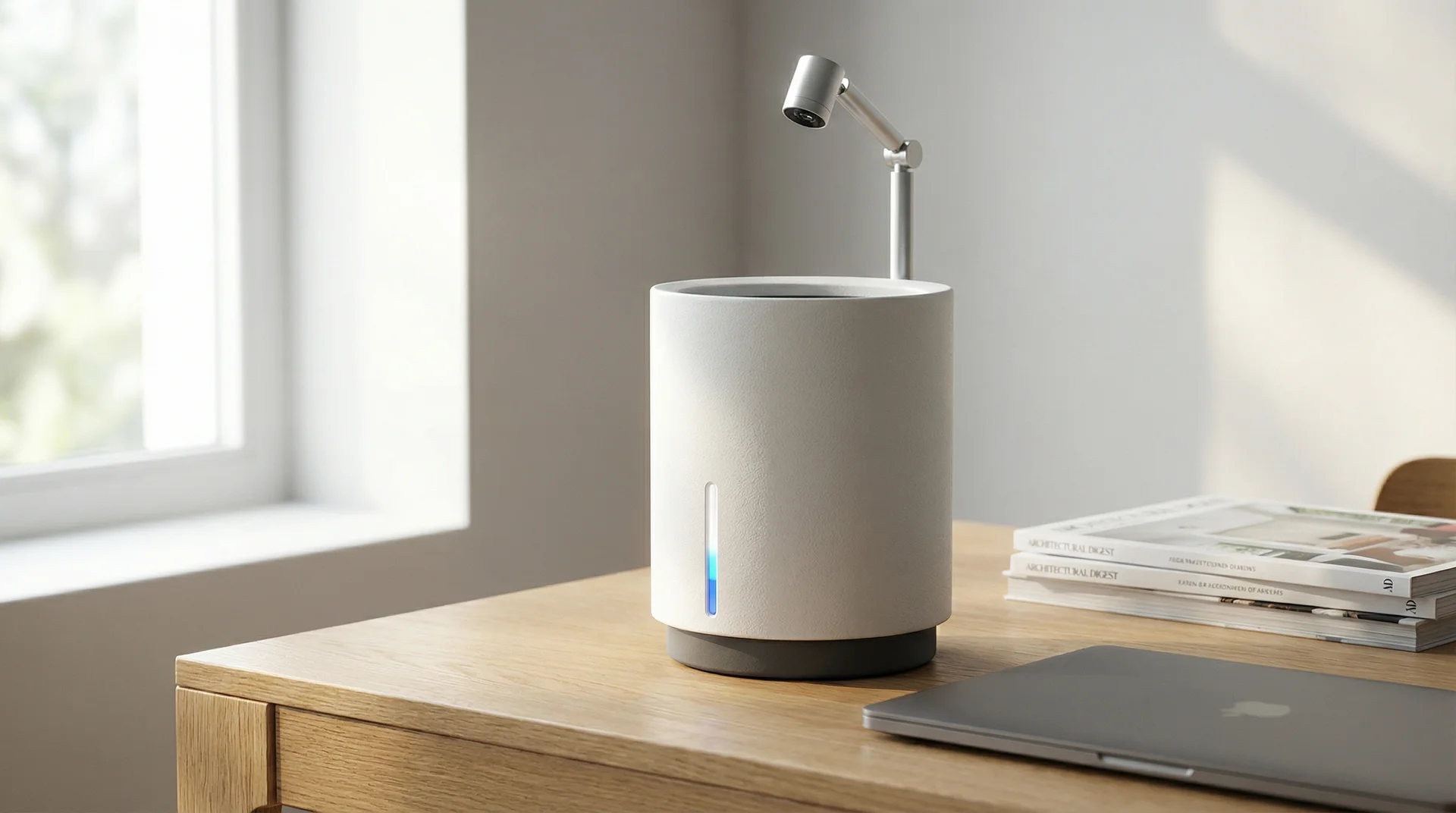

RENDER
Executive Summary
The Botanix Core is an autonomous botanical life-support system combining precision hydro-regulation with computer vision-based growth tracking. Designed for urban environments, it utilizes a closed-loop irrigation system and onboard AI to optimize plant health while providing users with granular environmental data via a mobile interface.
Technical Specifications
| Reservoir Capacity | 1.2 Liters (approx. 3 weeks autonomy) |
| Connectivity | Dual-band Wi-Fi 6 (802.11ax) + Bluetooth 5.2 LE |
| Sensor Array | Capacitive Soil Moisture, NPK/EC Soil Nutrient, Ambient Light (Lux), Temp/Humidity |
| Imaging | 5MP Macro-Focus CMOS Sensor (Leaf Health Analysis) |
| Processor | Dual-core 240MHz MCU with Neural Network Accelerator |
| Power Interface | USB-C PD (5V/3A) |
Manufacturing Analysis
Complexity
Medium
Timeline
7-9 Months (DVT to MP)
Est. Tooling Cost
$35,000 - $45,000 USD

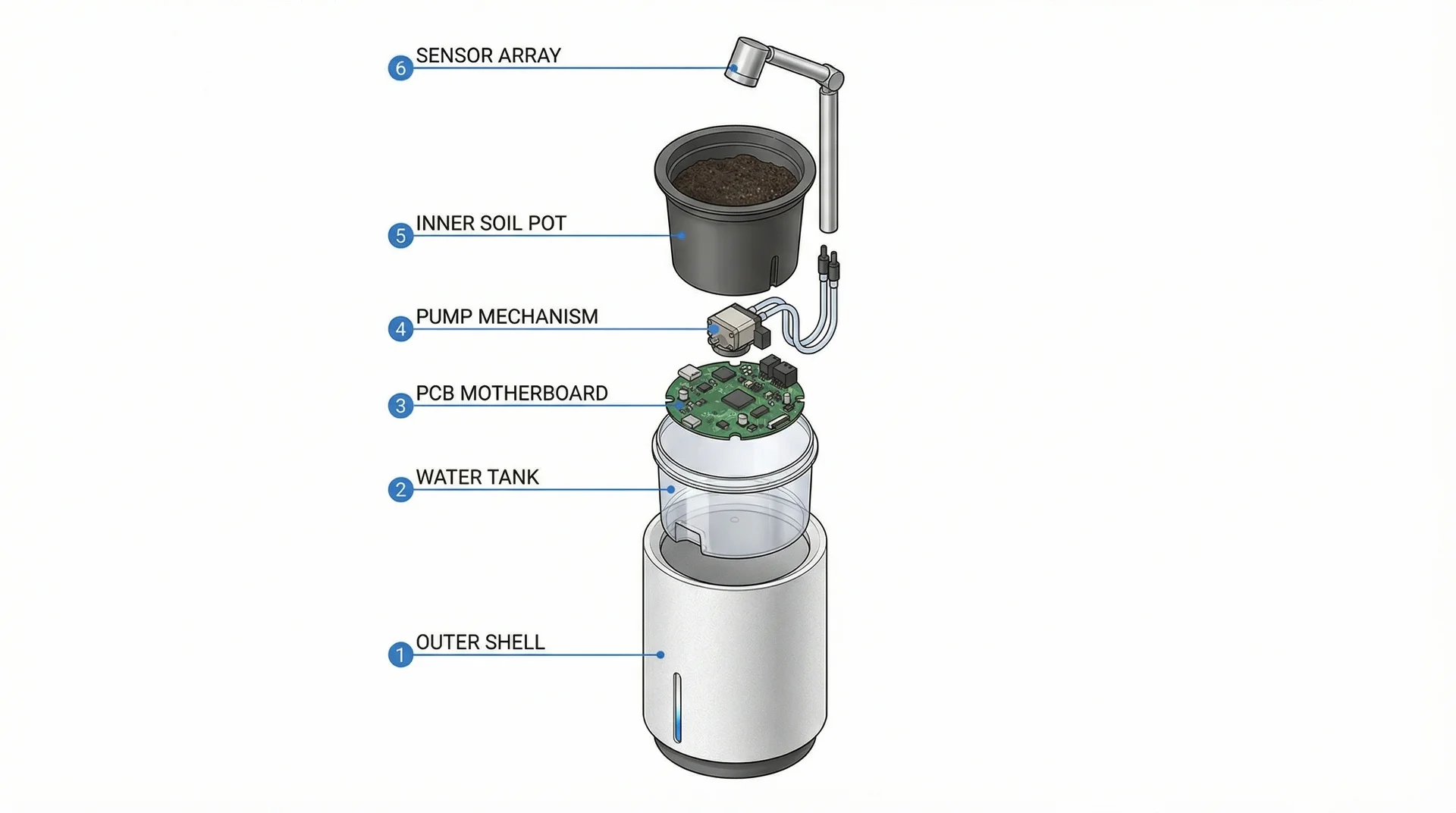

Bill of Materials
| Component | Material | Cost |
|---|---|---|
| Main Housing (Outer Shell) | Injection Molded ABS with Soft-Touch Matte Finish | 4.50 |
| Inner Soil Vessel | Recycled Polypropylene (Food Safe) | 1.20 |
| Main PCB Assembly | FR4, ESP32-S3 Module, Power Management ICs | 8.50 |
| Peristaltic Pump Unit | DC Motor, Silicone Tubing | 3.80 |
| Sensor Probe Assembly | PCB, Corrosion-Resistant Gold Plating | 2.10 |
| Optical Module | CMOS Sensor, Lens Assembly, Flex Cable | 5.50 |
Est. Unit Cost$38.00 - $45.00 USD
IntensityBalanced
