Apex One
Gravity Defied. The Ultimate Urban Monowheel.
Apex One
Gravity Defied. The Ultimate Urban Monowheel.
TECHNICAL DOCUMENTATION • GENERATED BY CONJUREANYTHING • ID: 0rwh1uzbj

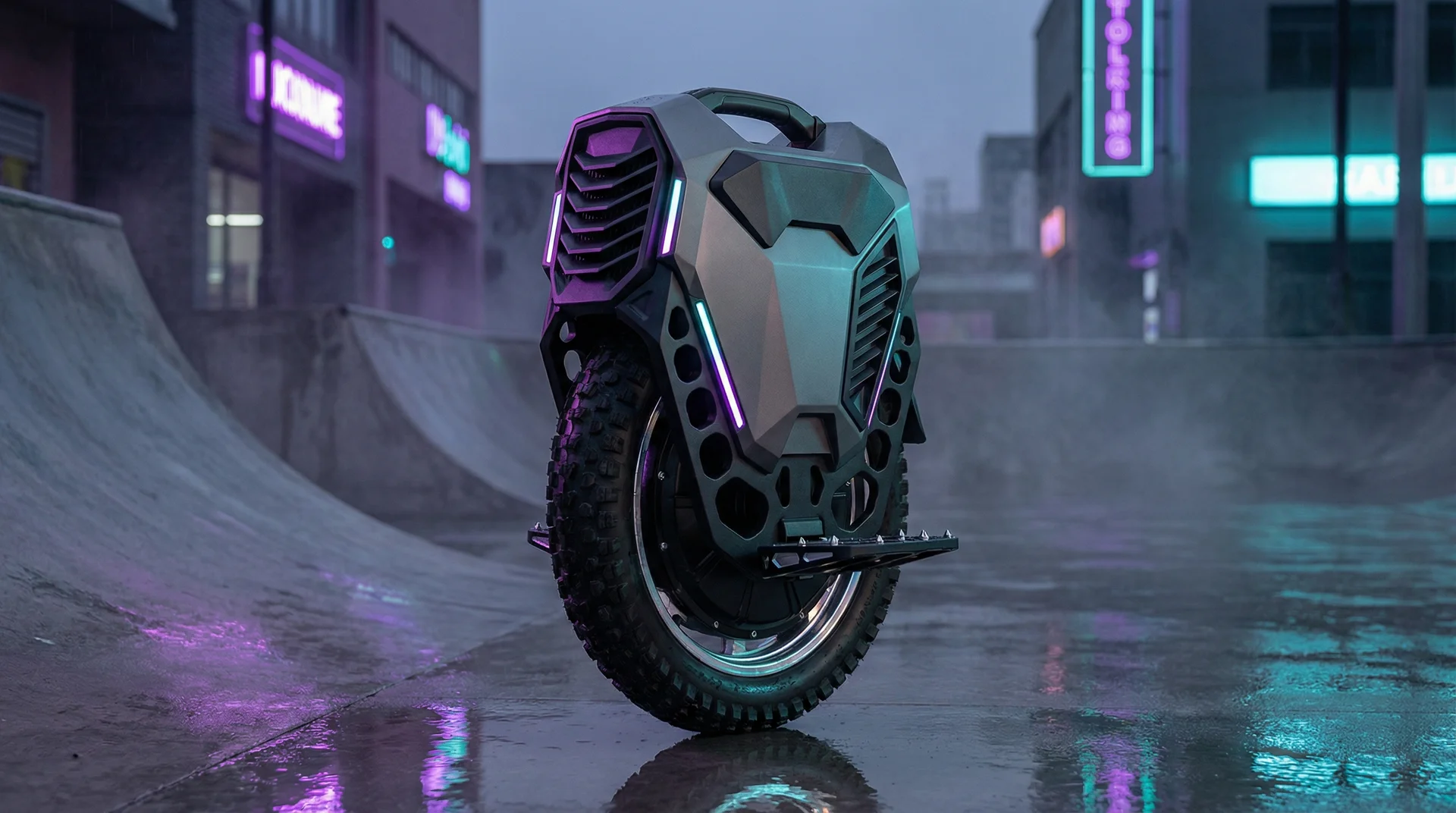

RENDER
Executive Summary
The Apex One is a high-performance self-balancing electric unicycle (EUC) designed for both aggressive urban commuting and light off-road trail riding. It integrates a proprietary 100V architecture with a hollow-bore motor and an adjustable air-suspension system to mitigate road dampening issues common in single-wheel vehicles. This platform prioritizes rider safety through redundant hall sensors and an advanced Smart BMS (Battery Management System) to prevent cut-outs at high speeds.
Technical Specifications
| Motor Power | 2500W Nominal / 5000W Peak Hollow Bore |
| Battery Capacity | 1800Wh (100.8V system) |
| Top Speed | 45 mph (72 km/h) |
| Suspension Travel | 80mm Adjustable Air Shock |
| Tire Size | 18 x 3.0 inch All-Terrain |
| Net Weight | 68 lbs (30.8 kg) |
Manufacturing Analysis
Complexity
High
Timeline
14 Months
Est. Tooling Cost
$180,000 - $220,000
Bill of Materials
| Component | Material | Cost |
|---|---|---|
| Hollow Bore Motor Assembly | Neodymium Magnets / Copper / Aluminum Rim | $280.00 |
| Battery Pack (21700 Cells) | Samsung 50S Li-ion / Nickel Strips | $450.00 |
| Main Controller Board (Motherboard) | PCB / High-Voltage MOSFETs / Aluminum Heatsink | $130.00 |
| Chassis Frame | Die-Cast Magnesium Alloy | $85.00 |
| Suspension Linkage & Shock | Steel / Anodized Aluminum | $75.00 |
| Outer Shell & Fairings | Injection Molded ABS / Polycarbonate | $40.00 |
Est. Unit Cost$1,150.00
IntensityBalanced
