AeroVista Pavilion
The workspace that breathes.
AeroVista Pavilion
The workspace that breathes.

Executive Summary

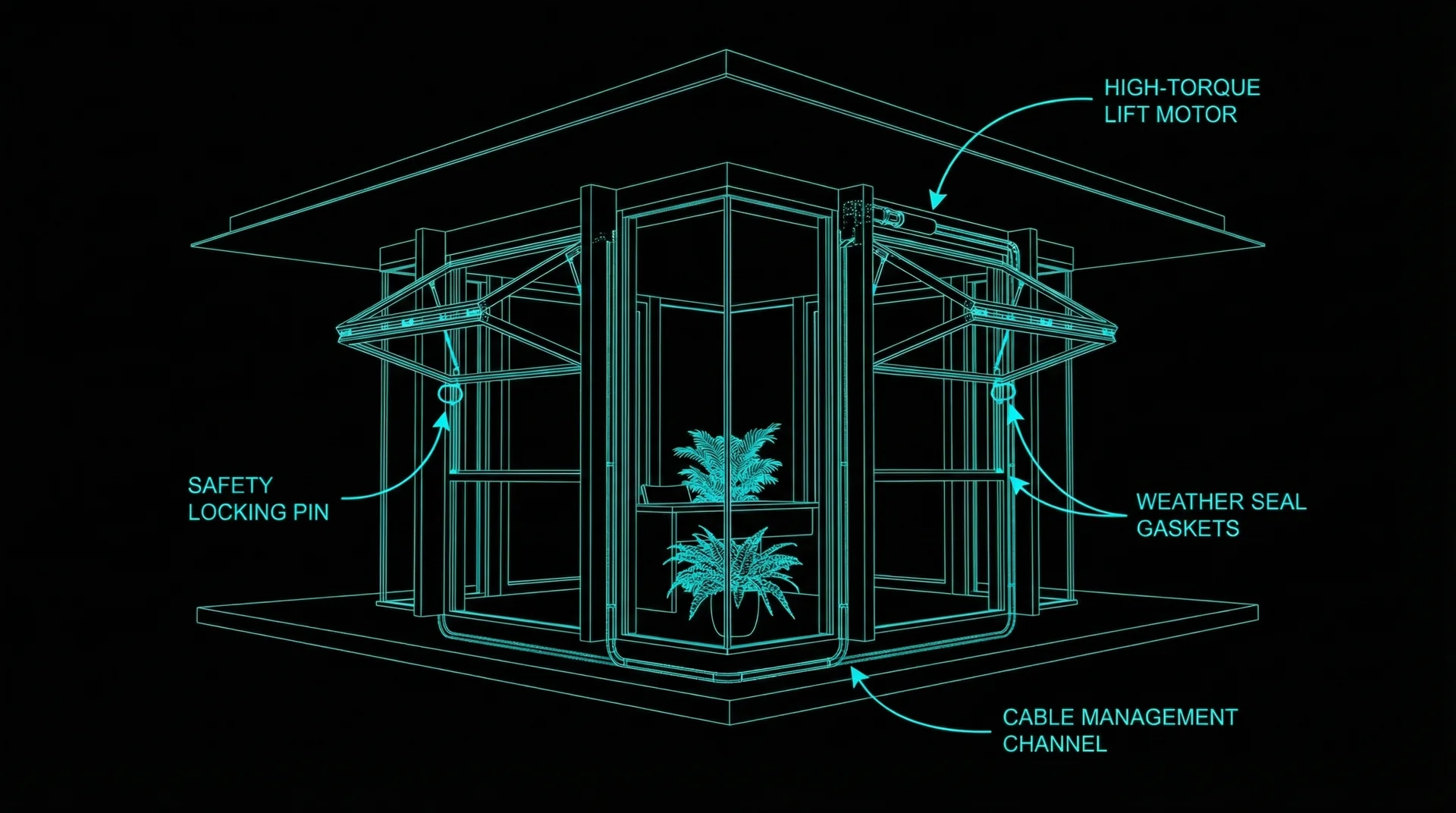

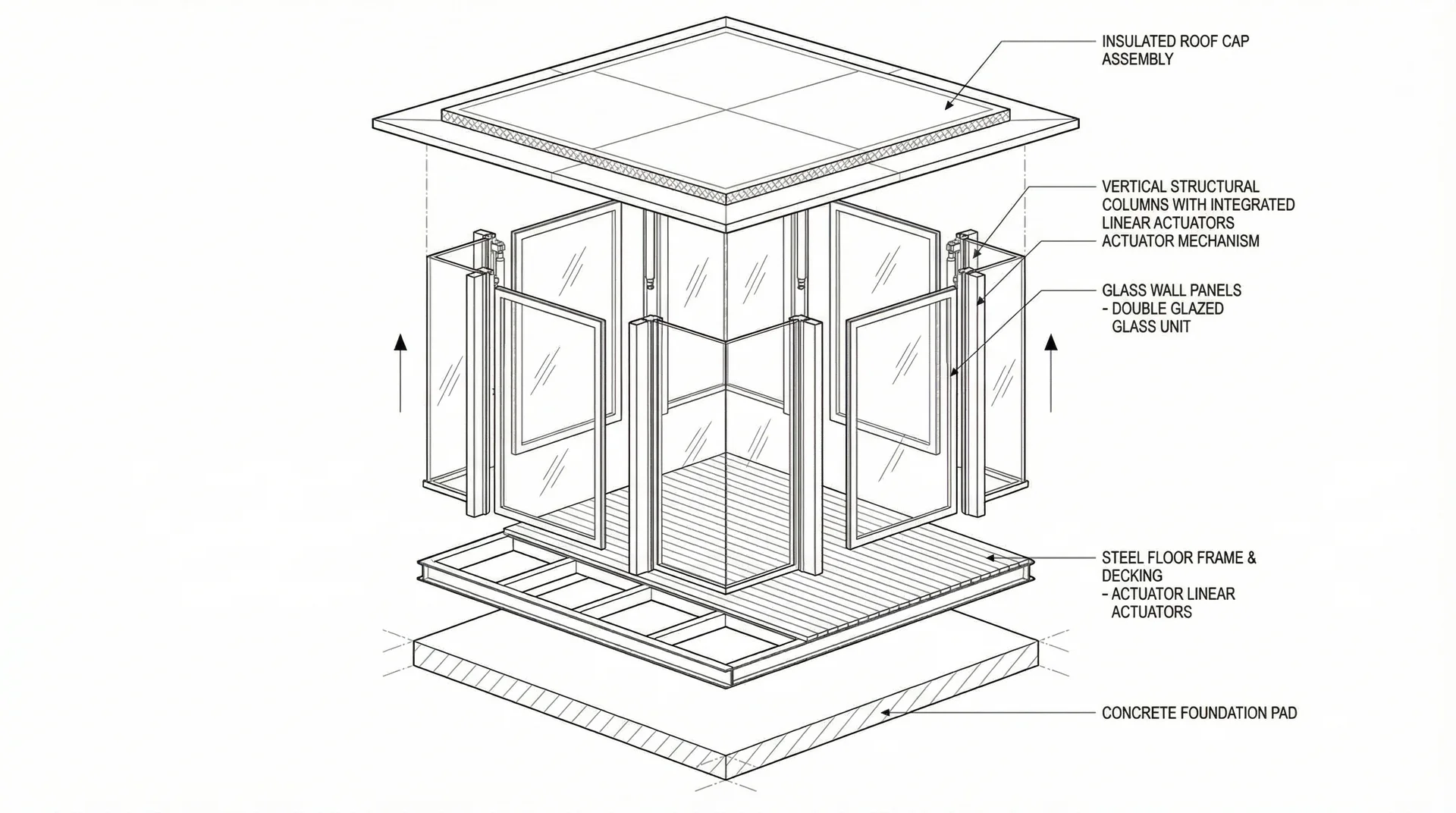

The AeroVista Pavilion is a prefabricated, modular office pod featuring a proprietary 'Vertical-Glide' fenestration system. Unlike traditional pods, all four tempered glass walls are engineered to lift vertically via concealed linear actuators housed in the structural columns, transforming a sealed, climate-controlled workspace into an open-air gazebo in under 20 seconds. This architectural solution addresses the market need for biophilic design by eliminating the physical barrier between the user and the outdoors without compromising on weatherproofing or security when closed.
Technical Specifications
| Dimensions | 3.2m (W) x 3.2m (L) x 2.8m (H) |
| Glazing | Double-pane Low-E tempered safety glass with optional electrochromic tinting |
| Lift Mechanism | Quad-synchronized heavy-duty screw jack actuators (12V DC) |
| Structural Load | ISO 1496 compliant steel corner posts; Roof load capacity 150kg/sqm |
| Power Requirement | Standard 110V/220V hookup (Solar ready) |
| Insulation | R-20 rigid foam in floor and roof assembly |
Manufacturing Analysis
Bill of Materials
| Component | Material | Cost |
|---|---|---|
| Structural Skeleton | Powder-coated Galvanized Steel H-Beams | 2,500 USD |
| Glazing Panels (x4) | Laminated Tempered Glass Units | 4,200 USD |
| Actuation System | Industrial Linear Actuators & Control Unit | 1,800 USD |
| Roof Assembly | Aluminum composite, EPDM membrane, Insulation | 1,500 USD |
| Flooring Base | Composite decking over steel subframe | 1,200 USD |
| HVAC/Electrical | Mini-split unit, LED lighting, wiring harness | 1,100 USD |
