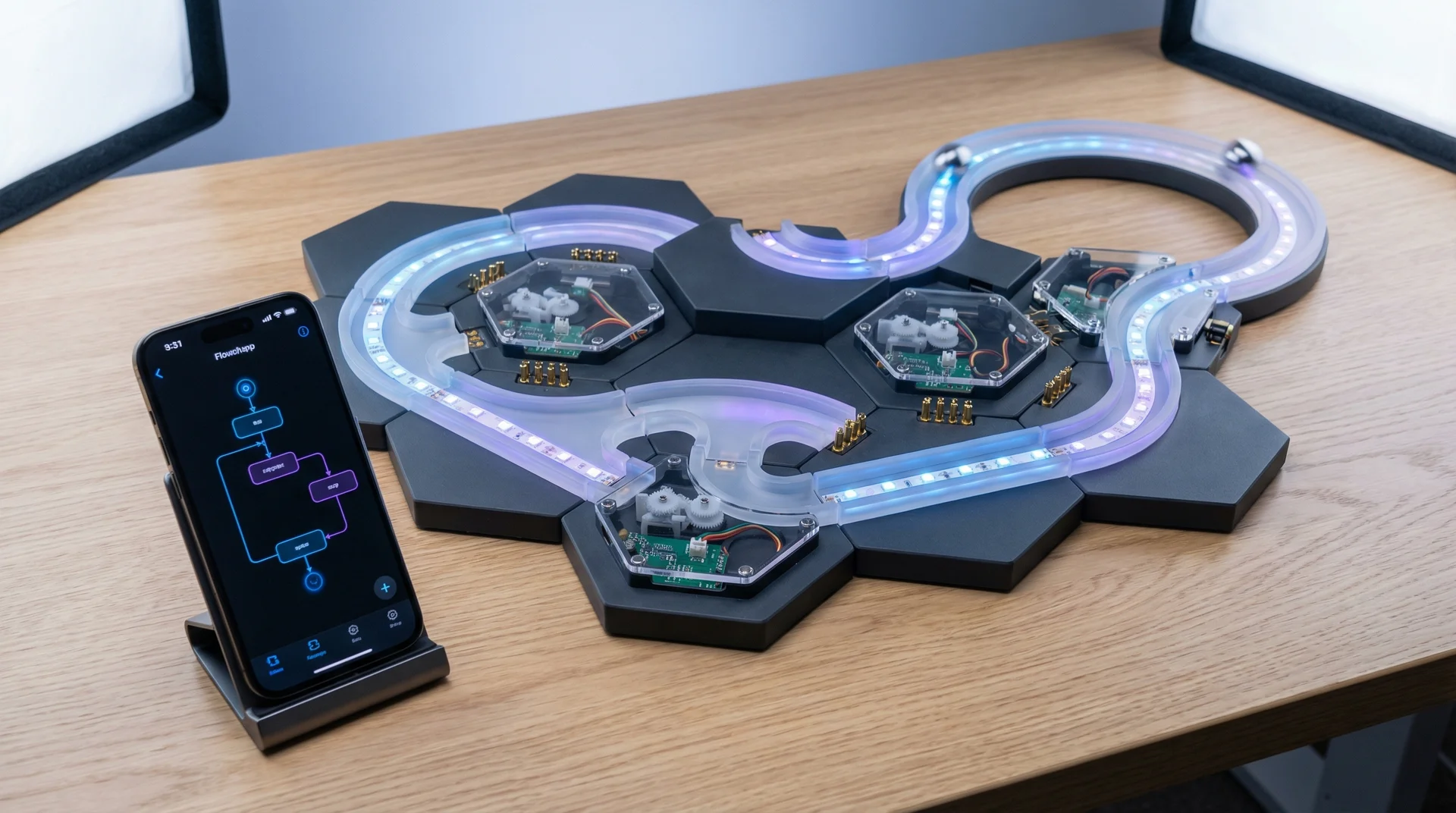

RENDER
Executive Summary
A modular, app-connected marble run system featuring servo-actuated track switches and motorized lifts controlled via Bluetooth Low Energy. Users design physical paths and program logic gates through an iOS interface, blending kinetic physics with introductory coding concepts in a tangible format.
Research Sources
Technical Specifications
| Connectivity | Bluetooth 5.0 LE (Mesh Network Capable) |
| Microcontroller | ESP32-S3 with Native USB |
| Actuation | High-speed micro-servos (0.1s/60°) |
| Sensing | IR Break-beam sensors at entry/exit nodes |
| Power Architecture | Magnetic Pogo-pin power rail (5V/3A) base plates |
Manufacturing Analysis
Complexity
High
Timeline
10-14 Months
Est. Tooling Cost
$55,000 - $75,000 USD
Bill of Materials
| Component | Material | Cost |
|---|---|---|
| Base Master Controller | PCB, ESP32, Housing | 6.50 |
| Active Switch Modules (3x) | Servo, ABS, IR Sensor | 11.25 |
| Passive Track Segments (20x) | Injection Molded Polycarbonate | 5.00 |
| Steel Spheres (10x) | Carbon Steel, Chrome Finish | 1.20 |
| Power Supply | USB-C Wall Adapter + Cable | 2.50 |
Est. Unit Cost$32.00 - $38.00 USD
IntensityBalanced
Refinements update specs + costs and generate new renders. Approve in Review to generate the full schematic suite.
